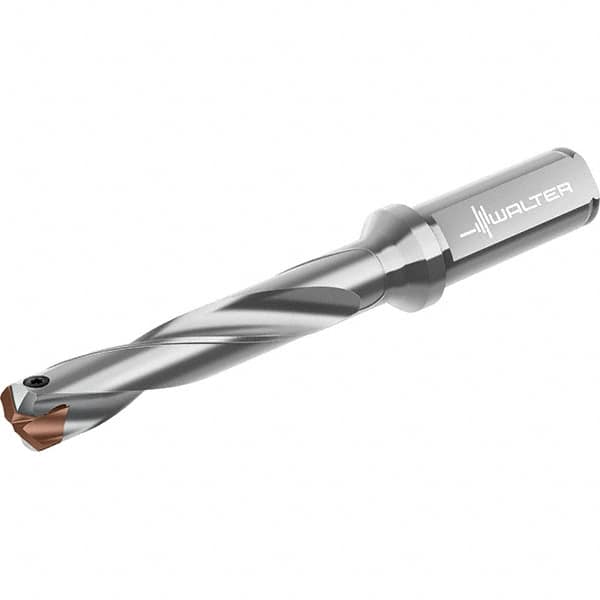

Walter - 22 to 22.9mm Diam, 5xD, 149mm Max Depth, 25mm Shank Diam, 209mm OAL, Replaceable Tip Drill - P6001-D22..R, P6003-D22..R, P6004-D22..R, P6005-D22..R Insert, D4140 Toolholder, Series D4140
Item #: 31003353
Brand: Walter
Model #: 7169828
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | D4140 |
| Minimum Drill Diameter (mm) | 22.00 |
| Maximum Drill Diameter (mm) | 22.90 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 149.00 |
| Shank Diameter (mm) | 25.00 |
| Insert Style | P6001-D22..R; P6003-D22..R; P6004-D22..R; P6005-D22..R |
| Toolholder Style | D4140 |
| Through Coolant | Through Coolant |
| Shank Type | Straight |
| Body Length (mm) | 149.00 |
| Overall Length (mm) | 209.00 |
