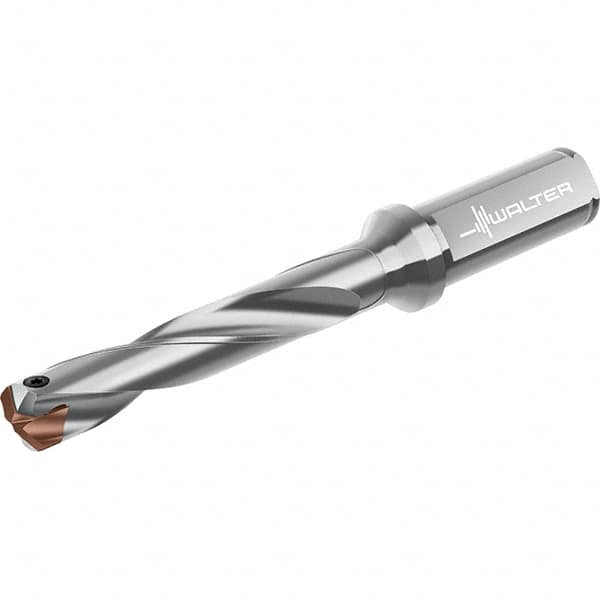

Walter - 16 to 16.99mm Diam, 5xD, 113mm Max Depth, 20mm Shank Diam, 166mm OAL, Replaceable Tip Drill - P6001-D16..R, P6003-D16..R, P6004-D16..R, P6005-D16..R Insert, D4140 Toolholder, Series D4140
Item #: 31003403
Brand: Walter
Model #: 7169822
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | D4140 |
| Minimum Drill Diameter (mm) | 16.00 |
| Maximum Drill Diameter (mm) | 16.99 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 113.00 |
| Shank Diameter (mm) | 20.00 |
| Insert Style | P6001-D16..R; P6003-D16..R; P6004-D16..R; P6005-D16..R |
| Toolholder Style | D4140 |
| Through Coolant | Through Coolant |
| Shank Type | Straight |
| Body Length (mm) | 113.09 |
| Overall Length (mm) | 166.00 |
