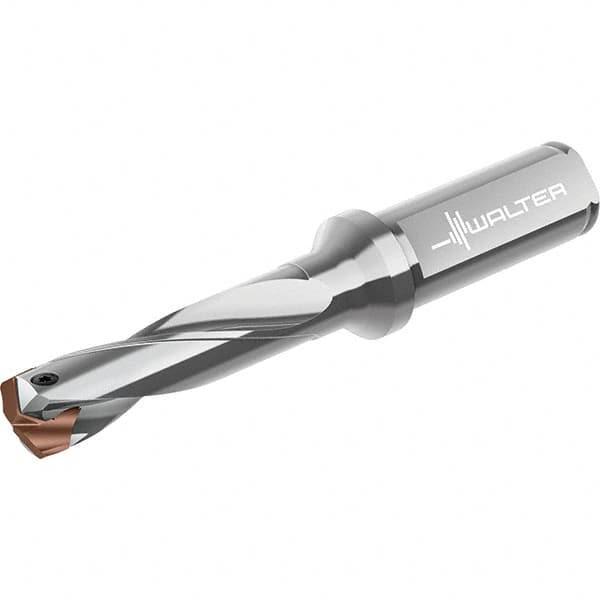

Walter - 29 to 29.99mm Diam, 3xD, 133mm Max Depth, 32mm Shank Diam, 198mm OAL, Replaceable Tip Drill - P6001-D29..R, P6003-D29..R, P6004-D29..R, P6005-D29..R Insert, D4140 Toolholder, Series D4140
Item #: 31003478
Brand: Walter
Model #: 7169815
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | D4140 |
| Minimum Drill Diameter (mm) | 29.00 |
| Maximum Drill Diameter (mm) | 29.99 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 133.00 |
| Shank Diameter (mm) | 32.00 |
| Insert Style | P6001-D29..R; P6003-D29..R; P6004-D29..R; P6005-D29..R |
| Toolholder Style | D4140 |
| Through Coolant | Through Coolant |
| Shank Type | Straight |
| Body Length (mm) | 132.72 |
| Overall Length (mm) | 198.00 |
