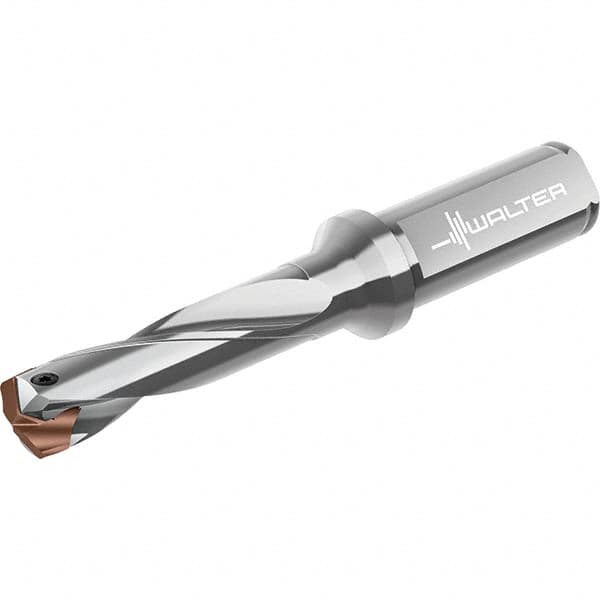

Walter - 23 to 23.99mm Diam, 3xD, 109mm Max Depth, 25mm Shank Diam, 169mm OAL, Replaceable Tip Drill - P6001-D23..R, P6003-D23..R, P6004-D23..R, P6005-D23..R Insert, D4140 Toolholder, Series D4140
Item #: 31003544
Brand: Walter
Model #: 7169809
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | D4140 |
| Minimum Drill Diameter (mm) | 23.00 |
| Maximum Drill Diameter (mm) | 23.99 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 109.00 |
| Shank Diameter (mm) | 25.00 |
| Insert Style | P6001-D23..R; P6003-D23..R; P6004-D23..R; P6005-D23..R |
| Toolholder Style | D4140 |
| Through Coolant | Through Coolant |
| Shank Type | Straight |
| Body Length (mm) | 108.81 |
| Overall Length (mm) | 169.00 |
