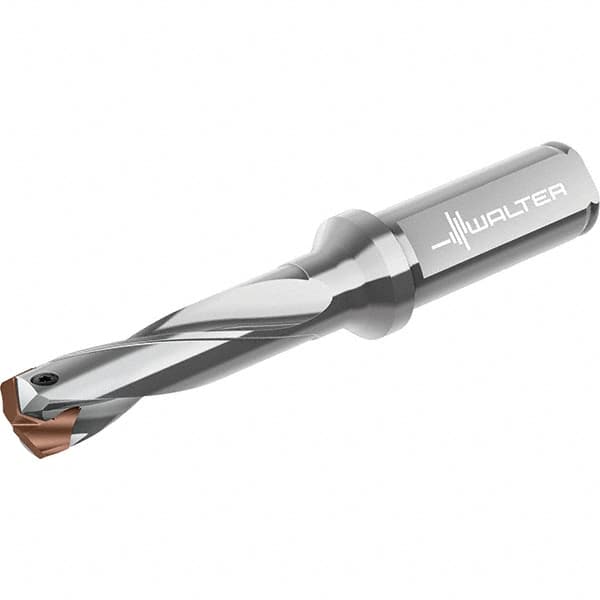

Walter - 15 to 15.99mm Diam, 3xD, 77mm Max Depth, 16mm Shank Diam, 128mm OAL, Replaceable Tip Drill - P6001-D15..R, P6003-D15..R, P6004-D15..R, P6005-D15..R Insert, D4140 Toolholder, Series D4140
Item #: 31003601
Brand: Walter
Model #: 7169801
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | D4140 |
| Minimum Drill Diameter (mm) | 15.00 |
| Maximum Drill Diameter (mm) | 15.99 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 77.00 |
| Shank Diameter (mm) | 16.00 |
| Insert Style | P6001-D15..R; P6003-D15..R; P6004-D15..R; P6005-D15..R |
| Toolholder Style | D4140 |
| Through Coolant | Through Coolant |
| Shank Type | Straight |
| Body Length (mm) | 77.27 |
| Overall Length (mm) | 128.00 |
