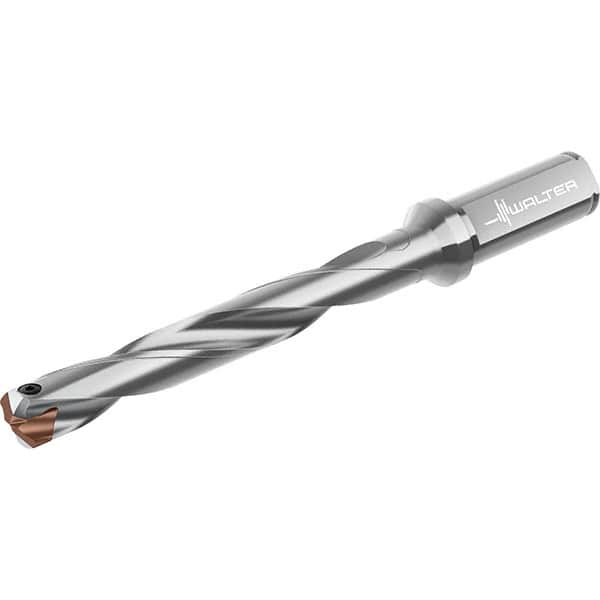

Walter - 20 to 20.99mm Diam, 7xD, 176mm Max Depth, 20mm Shank Diam, 230mm OAL, Replaceable Tip Drill - P6001-D20..R, P6003-D20..R, P6004-D20..R, P6005-D20..R Insert, D4140 Toolholder, Series D4140
Item #: 31003718
Brand: Walter
Model #: 7169846
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | D4140 |
| Minimum Drill Diameter (mm) | 20.00 |
| Maximum Drill Diameter (mm) | 20.99 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (mm) | 176.00 |
| Shank Diameter (mm) | 20.00 |
| Insert Style | P6001-D20..R; P6003-D20..R; P6004-D20..R; P6005-D20..R |
| Toolholder Style | D4140 |
| Through Coolant | Through Coolant |
| Shank Type | Straight |
| Body Length (mm) | 176.36 |
| Overall Length (mm) | 230.00 |
