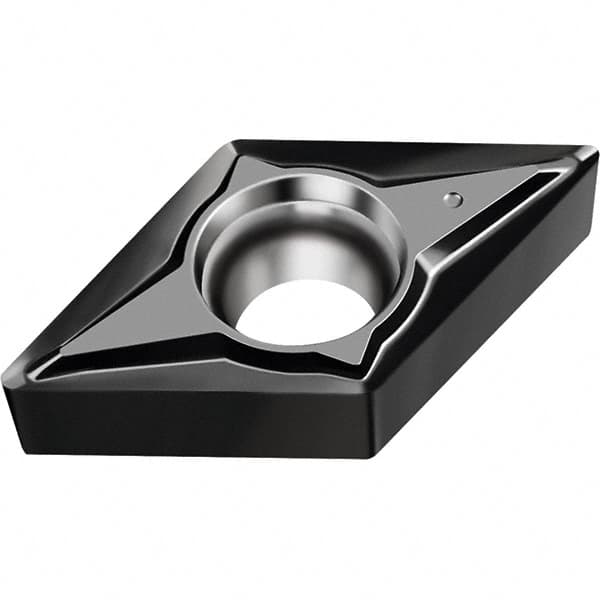

Walter - DCGT21.50.2 FN2 Grade WNN10 Carbide Turning Insert - Proprietary Finish, 55° Diamond, 1/4" Inscr Circle, 3/32" Thick, 0.004" Corner Radius
Item #: 31005473
Brand: Walter
Model #: 6955649
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCGT |
| Insert Size | 21.50.2 |
| Material | Carbide |
| Length (Decimal Inch) | 0.3050 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Manufacturer's Grade | WNN10 |
| Coating | Proprietary |
| Chip Breaker | FN2 |
| Insert Length (Decimal Inch) | 0.3050 |
| Overall Length (Decimal Inch) | 0.3050 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| ISO Number | DCGT070201-FN2 WNN10 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6955649 |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | DCGT |
| Maximum Depth of Cut (Decimal Inch) | 0.3050 |
| Cutting Width (mm) | 7.75 |
| Shape | Diamond |
