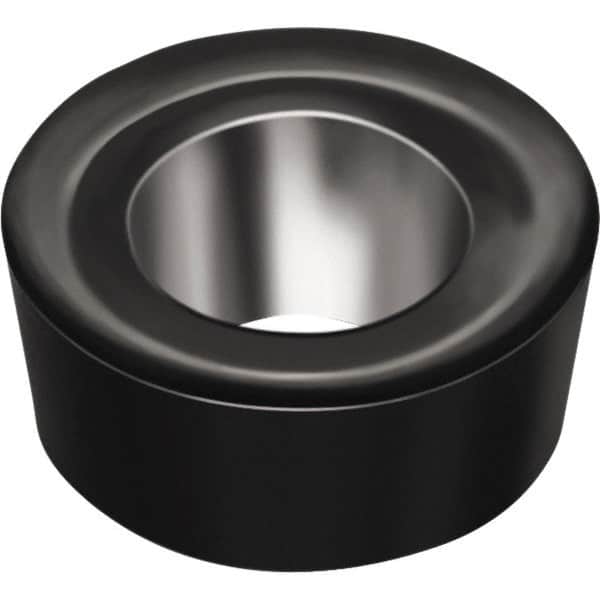

Walter - RCGT120400 MN2 Grade WNN10 Carbide Turning Insert - Proprietary Finish, 0° Round, 1/2" Inscr Circle, 3/16" Thick, 1/4" Corner Radius
Item #: 31005523
Brand: Walter
Model #: 6955712
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCGT |
| Insert Size | 120400 |
| Material | Carbide |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | WNN10 |
| Coating | Proprietary |
| Chip Breaker | MN2 |
| Overall Length (Decimal Inch) | 0.0000 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | RCGT120400-MN2 WNN10 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6955712 |
| Included Angle | 0 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | RCGT |
| Cutting Width (mm) | 0.00 |
| Shape | Round |
