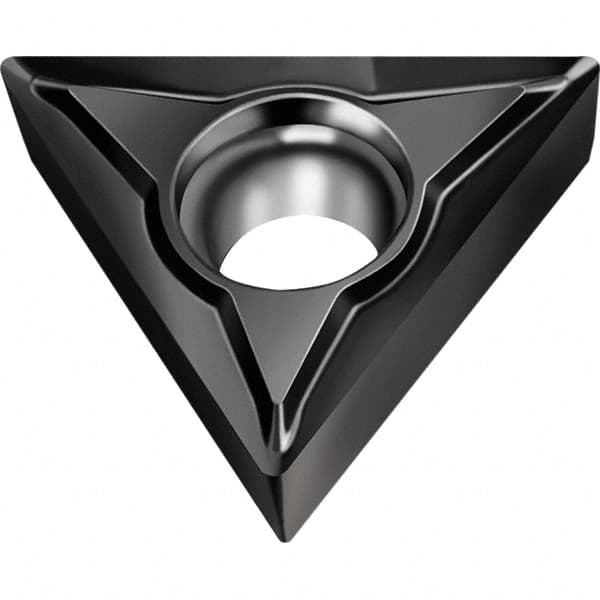

Walter - TCGT1.21.20.5 FN2 Grade WNN10 Carbide Turning Insert - Proprietary Finish, 60° Triangle, 5/32" Inscr Circle, 5/64" Thick, 0.008" Corner Radius
Item #: 31006489
Brand: Walter
Model #: 6955660
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCGT |
| Insert Size | 1.21.20.5 |
| Material | Carbide |
| Length (Decimal Inch) | 0.2610 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 5/64 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | WNN10 |
| Coating | Proprietary |
| Chip Breaker | FN2 |
| Insert Length (Decimal Inch) | 0.2610 |
| Overall Length (Decimal Inch) | 0.2610 |
| Hole Diameter (Decimal Inch) | 0.0850 |
| ISO Number | TCGT06T102-FN2 WNN10 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6955660 |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | TCGT |
| Maximum Depth of Cut (Decimal Inch) | 0.2610 |
| Cutting Width (mm) | 6.62 |
| Shape | Triangular |
