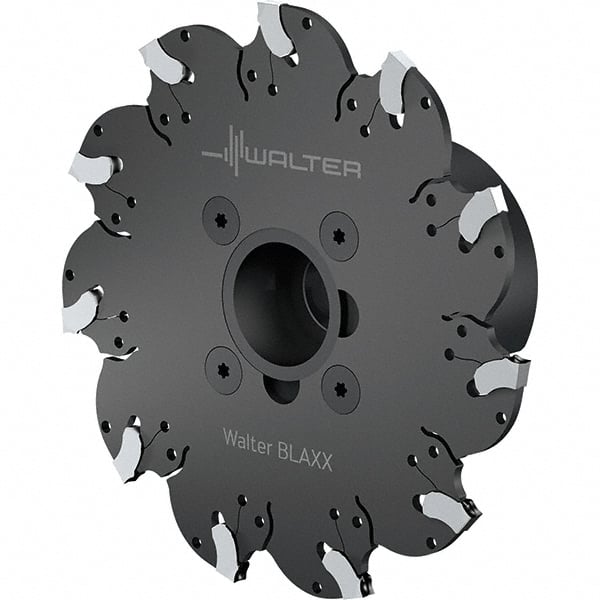

Walter - Arbor Connection, 3mm Cutting Width, 33mm Depth of Cut, 4.92mm Cutter Diam, 1" Hole DIam, 11 Tooth Indexable Slotting Cutter - F5055 Toolholder, SX-3.. Insert, Right Hand Cutting Direction
Item #: 31006547
Brand: Walter
Model #: 7354035
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor |
| Cutting Width (mm) | 3.00 |
| Maximum Depth of Cut (mm) | 33.00 |
| Cutter Diameter (mm) | 4.92 |
| Hole Diameter (Inch) | 1 |
| Number of Teeth | 11 |
| Toolholder Style | F5055 |
| Series | F5055 |
| Insert Style | SX-3.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 11 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Spring Clamp |
| Maximum RPM | 2600 |
| Number of Flutes | 11 |
| Minimum Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Cutting Width (mm) | 0.12 |
| Hub Diameter (mm) | 80.00 |
| Lead Angle | 90 |
| Through Coolant | No |
| Manufacturers Catalog Number | F5055.UBN32.125.Z11.3,0R |
| Overall Height (mm) | 50.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
