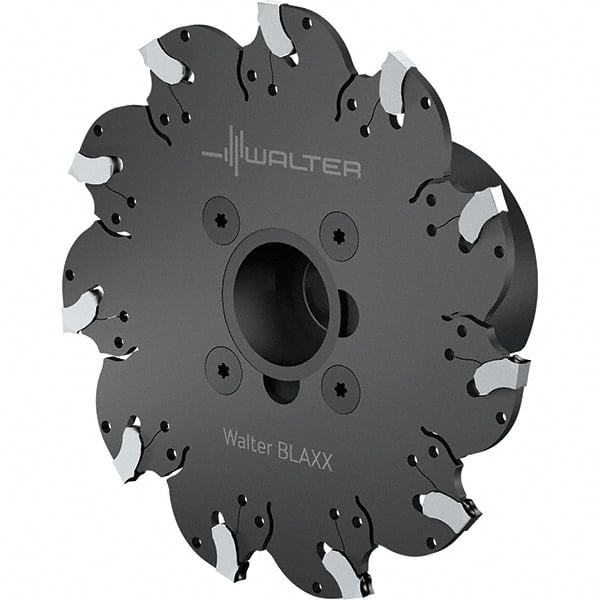

Walter - Arbor Connection, 3mm Cutting Width, 25mm Depth of Cut, 3.94mm Cutter Diam, 3/4" Hole DIam, 9 Tooth Indexable Slotting Cutter - F5055 Toolholder, SX-3.. Insert, Right Hand Cutting Direction
Item #: 31006570
Brand: Walter
Model #: 7354033
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor |
| Cutting Width (mm) | 3.00 |
| Maximum Depth of Cut (mm) | 25.00 |
| Cutter Diameter (mm) | 3.94 |
| Hole Diameter (Inch) | 3/4 |
| Number of Teeth | 9 |
| Toolholder Style | F5055 |
| Series | F5055 |
| Insert Style | SX-3.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 9 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Spring Clamp |
| Maximum RPM | 3200 |
| Number of Flutes | 9 |
| Minimum Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Cutting Width (mm) | 0.12 |
| Hub Diameter (mm) | 40.00 |
| Lead Angle | 90 |
| Through Coolant | No |
| Manufacturers Catalog Number | F5055.UBN22.100.Z09.3,0R |
| Overall Height (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
