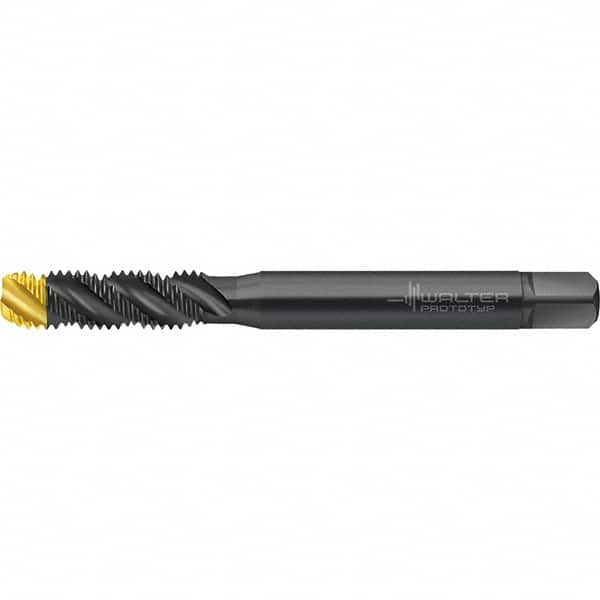

Walter-Prototyp - M4x0.70 Metric 3 Flute 6HX Semi-Bottoming Spiral Flute Tap - High Speed Steel, TiN Finish, 64.65mm OAL, Right Hand Flute, Right Hand Thread, Series TC120
Item #: 31009152
Brand: Walter-Prototyp
Model #: 7263030
Exact Tooling IR#: 04
Features and Benefits
Semi-bottoming chamfers are used for blind holes. They have 3 to 3-1/2 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed of a high flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M4x0.70 |
| Chamfer | Semi-Bottoming |
| Class of Fit | 6HX |
| Number of Flutes | 3 |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (mm) | 64.65 |
| Helix Angle | 45 |
| Thread Standard | Metric |
| Thread Length (mm) | 13.50 |
| Flute Type | Spiral |
| Style | Spiral Flute |
| Series/List | TC120 |
| Shank Diameter (mm) | 4.50 |
| Square Length (Inch) | 0.2362 |
| Material Application | P |
