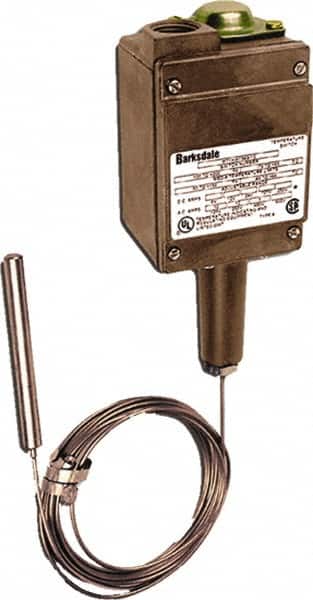

Barksdale - 50 to 250°F Remote Mount Temperature Switch - 3/8 x 4-1/16 Capillary, 304 Stainless Steel, ±1% of mid-60% of F.S.
Item #: 31026297
Brand: Barksdale
Model #: MT1H-H251S-12
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Temperature Range (F) | 50 - 250 |
| Type | Remote Mount Temperature Switch |
| Bulb Size (Decimal Inch) | 3/8 x 4-1/16 |
| Stem Type | Capillary |
| Contact Form | Single Set Point SPDT |
| Repeatability | ±1% of mid-60% of F.S |
| Amperage Rating | 10 Amp@125/250VAC; 3 Amp@480VDC |
| Material | 304 Stainless Steel |
| Additional Information | Terminal Strip; NEMA 4/13; 12' Capillary |
