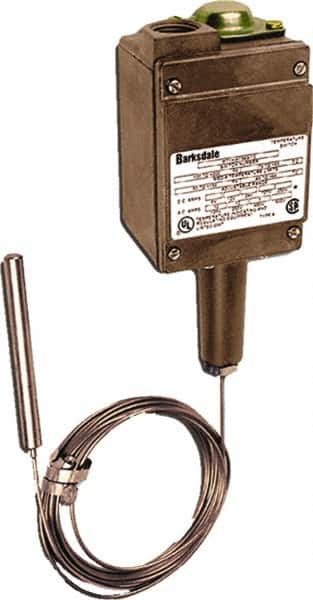

Barksdale - -50 to 150°F Remote Mount Temperature Switch - 3/8 x 4-1/16 Capillary, 304 Stainless Steel, ±1% of mid-60% of F.S.
Item #: 31026362
Brand: Barksdale
Model #: T2H-S154S-S0309
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Temperature Range (F) | -50 - 150 |
| Type | Remote Mount Temperature Switch |
| Bulb Size (Decimal Inch) | 3/8 x 4-1/16 |
| Stem Type | Capillary |
| Contact Form | Dual Set Point SPDT |
| Repeatability | ±1% of mid-60% of F.S |
| Amperage Rating | 15 Amp@125/250/480VAC; 5 Amp@24VDC; 0.05 Amp@125VDC; 0.03 Amp@250VDC |
| Material | 304 Stainless Steel |
| Additional Information | Terminal Strip; NEMA 4/13; 1@29deg C Decreasing Set Point; 2@35deg C Increasing Set Point; 6' Capillary |
