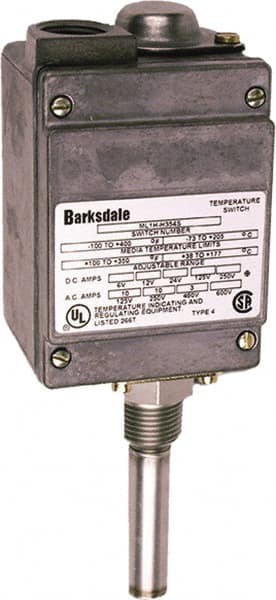

Barksdale - 15 to 140°F Local Mount Temperature Switch - 1/2" NPT, 9/16 x 2-25/32 Rigid Stem, Brass, ±1% of mid-60% of F.S.
Item #: 31030547
Brand: Barksdale
Model #: ML1H-H202
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Temperature Range (F) | 15 - 140 |
| Type | Local Mount Temperature Switch |
| Stem Size (Decimal Inch) | 9/16 x 2-25/32 |
| Stem Type | Rigid Stem |
| Contact Form | Single Set Point SPDT |
| Repeatability | ±1% of mid-60% of F.S |
| Amperage Rating | 10 Amp@125/250VAC; 3 Amp@480VDC |
| Material | Brass |
| Additional Information | 1/2NPT; Terminal Strip; NEMA 4/13 |
