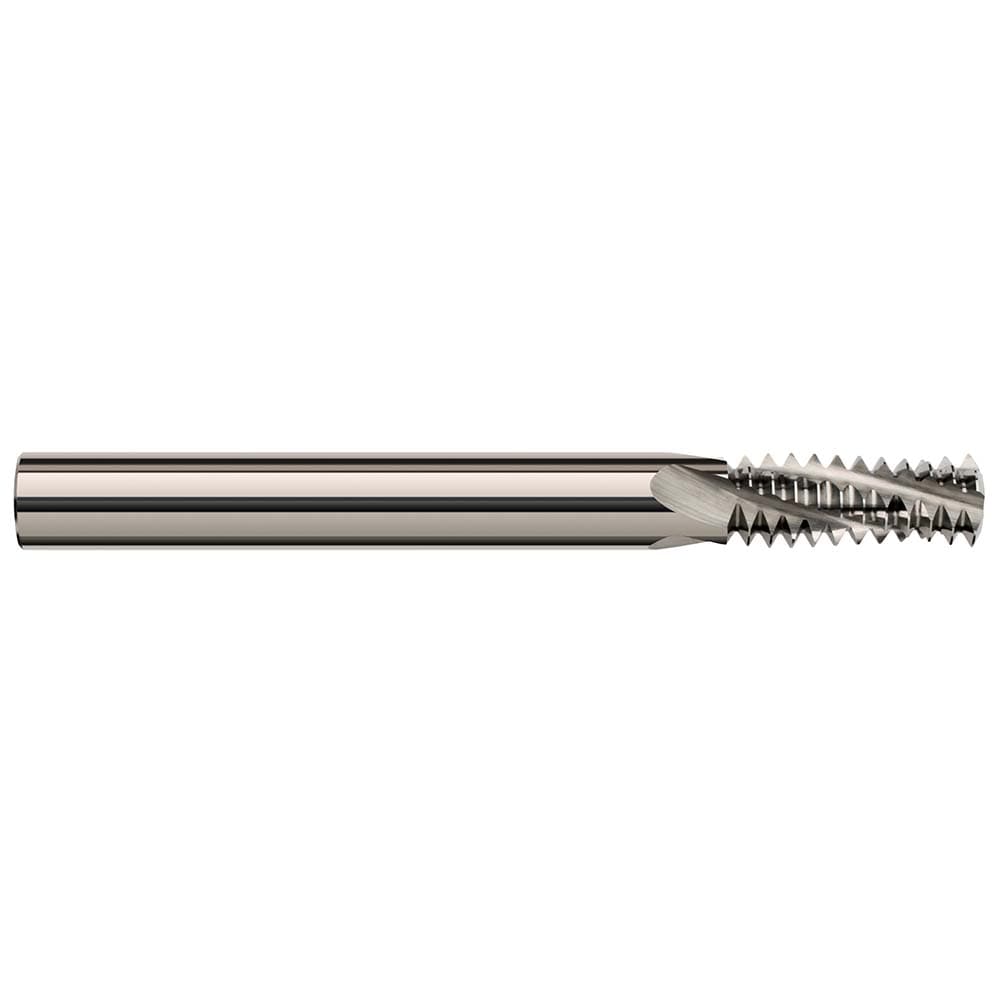

Brand: Harvey Tool / Part #: 16901
Item #: 82499252
Brand: Harvey Tool
Model #: 16901
Product Specifications
| Pitch (mm) | 0.40 |
| Material | Solid Carbide |
| Thread Size (mm) | M2x0.4 |
| Thread Depth | 0.1260000000 |
| Thread Type | Internal/External |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Cutting Diameter (mm) | 1.50 |
| Cutting Diameter (Decimal Inch) | 0.0590 |
| Minimum Nominal Diameter (mm) | 2 |
| Shank Length (Decimal Inch) | 1.8740 |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
| Series | Thread Milling Cutters - Multi-Form - Metric |
| Number Of Flutes | 3 |
| Coating/Finish | Uncoated |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1260 |
| Thread Length (Decimal Inch) | 0.1260 |
