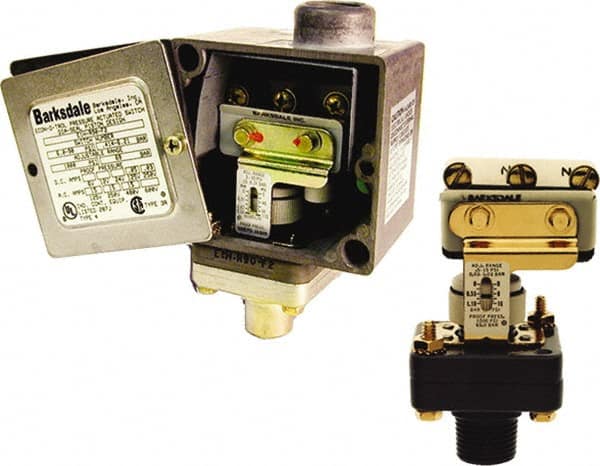

Barksdale - 3 to 90 psi Adjustable Range, 1,000 Max psi, Diaphragm Piston Pressure Switch - 1/4 NPT Male, Screw Terminals, SPDT Contact, Anodized Al Wetted Parts, 2% Repeatability
Item #: 31033509
Brand: Barksdale
Model #: E1H-H90-S0040
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 90 psi |
| Minimum Adjustable Range | 3 psi |
| Type | Diaphragm Piston Pressure Switch |
| Maximum Pressure Setting | 1000 psi |
| Thread Size | 1/4 |
| Thread Type | NPT Male |
| Electrical Connection | Screw Terminals |
| Amperage Rating | 10 Amp@125/250VAC; 3 Amp@480VAC |
| Contact Type | SPDT |
| Wetted Parts Material | Anodized Al |
| Repeatability | 2% |
| Contact Form | SPDT |
| Maximum Adjustable Range on Fall | 90 |
| Maximum Adjustable Range on Rise | 90 |
| Maximum Deadband | 8.00 |
| Maximum Setpoint Deadband | 8.00 |
| Maximum Temperature (C) | 74 |
| Maximum Temperature (F) | 165 |
| Minimum Adjustable Range on Fall | 3 |
| Minimum Adjustable Range on Rise | 3 |
| Minimum Deadband | 0.5 psi |
| Minimum Setpoint Deadband | 0.50 |
| Minimum Temperature (C) | -29 |
| Minimum Temperature (F) | -20 |
| Additional Information | Anodized Aluminum; 17deg F Falling Set Point |
