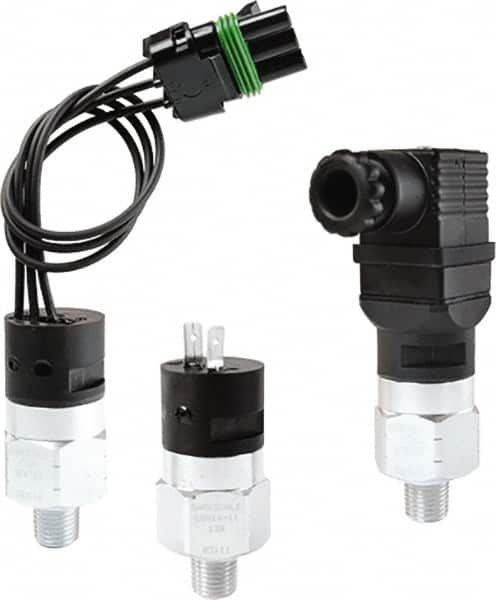

Barksdale - 1000 to 3,000 psi Adjustable Range, 9,000 Max psi, Compact Pressure Switch - G 1/4 Male, 18in Free Leads, SPDT Contact, Brass Wetted Parts, 3% Repeatability
Item #: 31036130
Brand: Barksdale
Model #: CSM17-31-41B
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 3000 psi |
| Minimum Adjustable Range | 1000 psi |
| Type | Compact Pressure Switch |
| Maximum Pressure Setting | 9000 psi |
| Thread Size | G 1/4 |
| Thread Type | Male |
| Electrical Connection | 18in Free Leads |
| Amperage Rating | 5 Amp@125VAC |
| Contact Type | SPDT |
| Wetted Parts Material | Brass |
| Repeatability | 3% |
| Contact Form | SPDT |
| Maximum Adjustable Range on Fall | 3000 |
| Maximum Adjustable Range on Rise | 3000 |
| Maximum Deadband | 360.00 |
| Maximum Setpoint Deadband | 360.00 |
| Maximum Temperature (C) | 80 |
| Maximum Temperature (F) | 176 |
| Minimum Adjustable Range on Fall | 1000 |
| Minimum Adjustable Range on Rise | 1000 |
| Minimum Deadband | 180 psi |
| Minimum Setpoint Deadband | 180.00 |
| Minimum Temperature (C) | -29 |
| Minimum Temperature (F) | -20 |
| Additional Information | Brass; BUNA-N Diaphragm |
