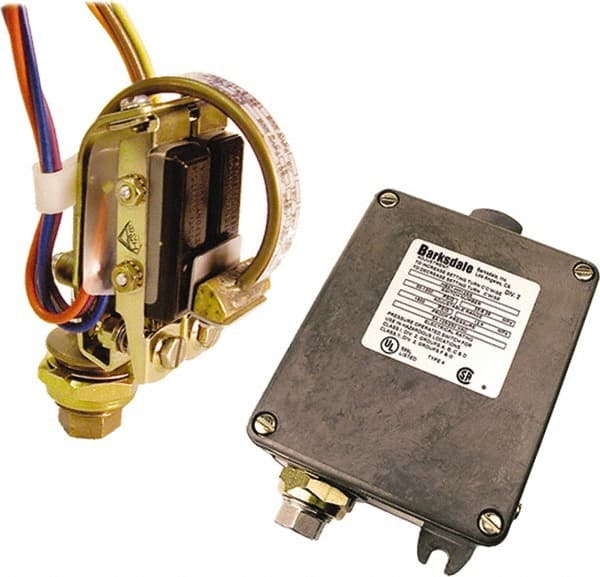

Barksdale - 160 to 3,200 psi Adjustable Range, 4,000 Max psi, Bourdon Tube Pressure Switch - 1/4 NPT Female, 12in Free Leads, SPDT Contact, 316SS Wetted Parts, 1% Repeatability
Item #: 31037674
Brand: Barksdale
Model #: B1S-S32SS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 3200 psi |
| Minimum Adjustable Range | 160 psi |
| Type | Bourdon Tube Pressure Switch |
| Maximum Pressure Setting | 4000 psi |
| Thread Size | 1/4 |
| Thread Type | NPT Female |
| Electrical Connection | 12in Free Leads |
| Amperage Rating | 15 Amp@125/250/480VAC; 5 Amp@24VDC; 0.05 Amp@125VDC; 0.003 Amp@250VDC |
| Contact Type | SPDT |
| Wetted Parts Material | 316SS |
| Repeatability | 1% |
| Contact Form | SPDT |
| Maximum Adjustable Range on Fall | 3200 |
| Maximum Adjustable Range on Rise | 3200 |
| Maximum Deadband | 39.00 |
| Maximum Setpoint Deadband | 39.00 |
| Maximum Temperature (C) | 74 |
| Maximum Temperature (F) | 165 |
| Minimum Adjustable Range on Fall | 160 |
| Minimum Adjustable Range on Rise | 160 |
| Minimum Deadband | 16 psi |
| Minimum Setpoint Deadband | 16.00 |
| Minimum Temperature (C) | -40 |
| Minimum Temperature (F) | -40 |
| Additional Information | 316SS |
