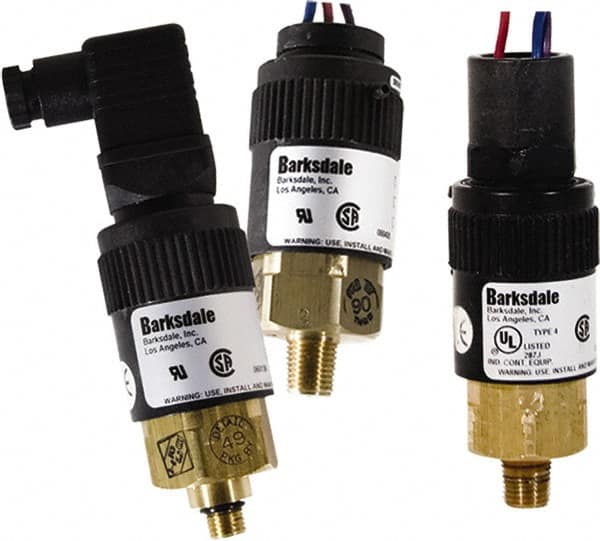

Barksdale - 3650 to 7,500 psi Adjustable Range, 12,000 Max psi, Compact Pressure Switch - 1/4 NPT Male, DIN 43650, SPDT Contact, Brass Wetted Parts, 2% Repeatability
Item #: 31038029
Brand: Barksdale
Model #: T96201-BB4-T2P1
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 7500 psi |
| Minimum Adjustable Range | 3650 psi |
| Type | Compact Pressure Switch |
| Maximum Pressure Setting | 12000 psi |
| Thread Size | 1/4 |
| Thread Type | NPT Male |
| Electrical Connection | DIN 43650 |
| Amperage Rating | 5 Amp@125/250VAC; 5 Amp@30VDC |
| Contact Type | SPDT |
| Wetted Parts Material | Brass |
| Repeatability | 2% |
| Contact Form | SPDT |
| Maximum Adjustable Range on Fall | 7500 |
| Maximum Adjustable Range on Rise | 7500 |
| Maximum Deadband | 1000.00 |
| Maximum Setpoint Deadband | 1000.00 |
| Maximum Temperature (C) | 74 |
| Maximum Temperature (F) | 165 |
| Minimum Adjustable Range on Fall | 3650 |
| Minimum Adjustable Range on Rise | 3650 |
| Minimum Deadband | 200 psi |
| Minimum Setpoint Deadband | 200.00 |
| Minimum Temperature (C) | -40 |
| Minimum Temperature (F) | -40 |
| Additional Information | Brass; Tamper Resistant Setscrew; 7/16-20 SAE Pressure Fitting w/O-Ring; BUNA-N O-Ring |
