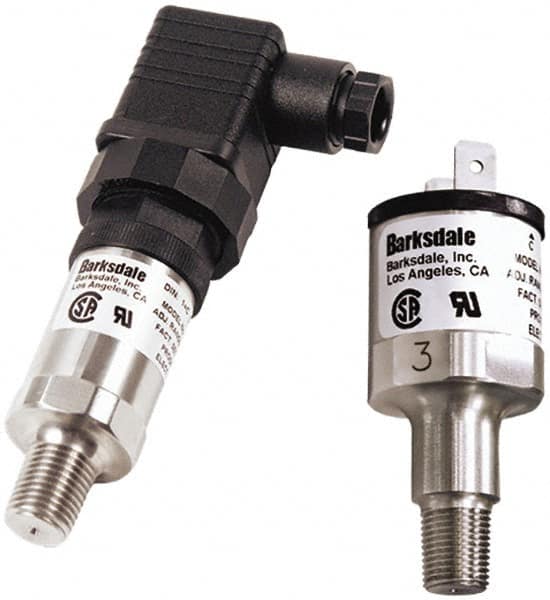

Barksdale - 100 to 1,000 psi Adjustable Range, 6,000 Max psi, Compact Pressure Switch - 7/16-20 UNF SAE, SJO Type Cable, (3) 18in Free Leads, SPDT Contact, SS Wetted Parts, 8% Repeatability
Item #: 31040124
Brand: Barksdale
Model #: 714S-17-3B-250R
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 1000 psi |
| Minimum Adjustable Range | 100 psi |
| Type | Compact Pressure Switch |
| Maximum Pressure Setting | 6000 psi |
| Thread Size | 7/16-20 |
| Thread Type | UNF SAE |
| Electrical Connection | SJO Type Cable, (3) 18in Free Leads |
| Amperage Rating | 5A@125/250VAC |
| Contact Type | SPDT |
| Wetted Parts Material | SS |
| Repeatability | 8% |
| Contact Form | SPDT |
| Maximum Adjustable Range on Fall | 1000 |
| Maximum Adjustable Range on Rise | 1000 |
| Maximum Deadband | 300.00 |
| Maximum Setpoint Deadband | 300.00 |
| Maximum Temperature (C) | 82 |
| Maximum Temperature (F) | 180 |
| Minimum Adjustable Range on Fall | 100 |
| Minimum Adjustable Range on Rise | 100 |
| Minimum Deadband | 30 psi |
| Minimum Setpoint Deadband | 30.00 |
| Minimum Temperature (C) | -40 |
| Minimum Temperature (F) | -40 |
| Additional Information | Stainless Steel; 250deg F Rising Set Point; BUNA-N Diaphragm |
