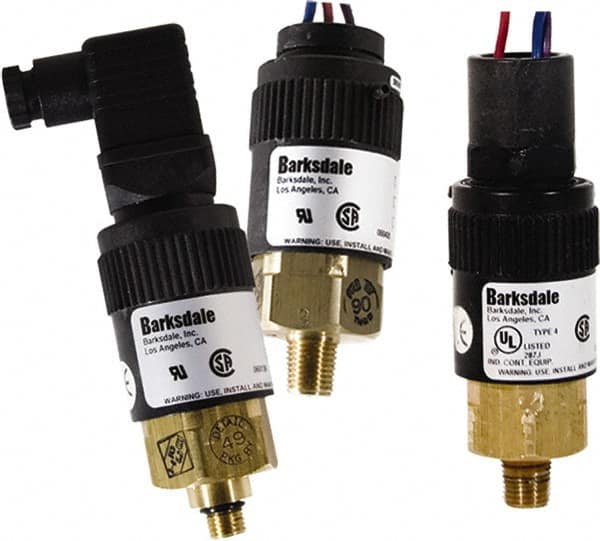

Barksdale - 360 to 1,700 psi Adjustable Range, 7,000 Max psi, Compact Pressure Switch - 1/4 NPT Male, 12in Free Leads, SPDT Contact, SS Wetted Parts, 2% Repeatability
Item #: 31042393
Brand: Barksdale
Model #: T96201-BB2SS-P1
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 1700 psi |
| Minimum Adjustable Range | 360 psi |
| Type | Compact Pressure Switch |
| Maximum Pressure Setting | 7000 psi |
| Thread Size | 1/4 |
| Thread Type | NPT Male |
| Electrical Connection | 12in Free Leads |
| Amperage Rating | 5 Amp@125/250VAC; 5 Amp@30VDC |
| Repeatability | 2% |
| Contact Form | SPDT |
| Maximum Adjustable Range on Fall | 1700 |
| Maximum Adjustable Range on Rise | 1700 |
| Maximum Deadband | 400.00 |
| Maximum Setpoint Deadband | 400.00 |
| Maximum Temperature (C) | 74 |
| Maximum Temperature (F) | 165 |
| Minimum Adjustable Range on Fall | 360 |
| Minimum Adjustable Range on Rise | 360 |
| Minimum Deadband | 40 psi |
| Minimum Setpoint Deadband | 40.00 |
| Minimum Temperature (C) | -40 |
| Minimum Temperature (F) | -40 |
| Additional Information | Stainless Steel; Tamper Resistant Setscrew; BUNA-N O-Ring |
