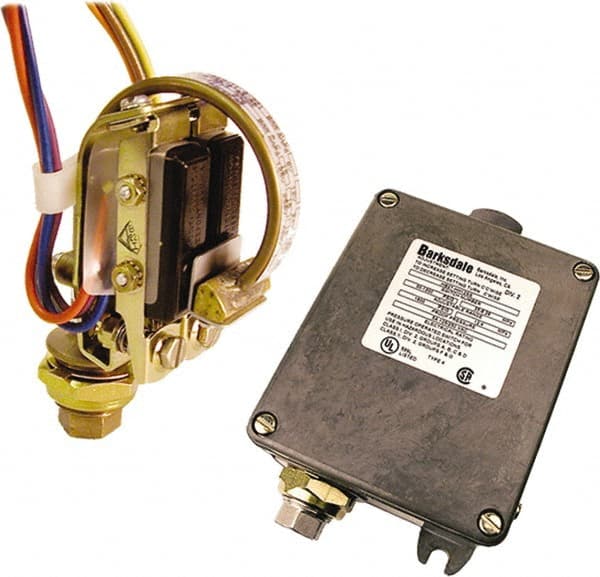

Barksdale - 325 to 6,500 psi Adjustable Range, 9,750 Max psi, Bourdon Tube Pressure Switch - 1/4 Tube Male, Terminals, SPDT Contact, 316SS Wetted Parts, 1% Repeatability
Item #: 31042682
Brand: Barksdale
Model #: B1T-A65SS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 6500 psi |
| Minimum Adjustable Range | 325 psi |
| Type | Bourdon Tube Pressure Switch |
| Maximum Pressure Setting | 9750 psi |
| Thread Size | 1/4 |
| Thread Type | Tube Male |
| Electrical Connection | Terminals |
| Amperage Rating | 10 Amp@125/250VAC; 3 Amp@480VAC; 0.5 Amp@24VDC |
| Contact Type | SPDT |
| Wetted Parts Material | 316SS |
| Repeatability | 1% |
| Contact Form | SPDT |
| Maximum Adjustable Range on Fall | 6500 |
| Maximum Adjustable Range on Rise | 6500 |
| Maximum Deadband | 115.00 |
| Maximum Setpoint Deadband | 115.00 |
| Maximum Temperature (C) | 74 |
| Maximum Temperature (F) | 165 |
| Minimum Adjustable Range on Fall | 325 |
| Minimum Adjustable Range on Rise | 325 |
| Minimum Deadband | 54 psi |
| Minimum Setpoint Deadband | 54.00 |
| Minimum Temperature (C) | -40 |
| Minimum Temperature (F) | -40 |
| Additional Information | 316SS |
