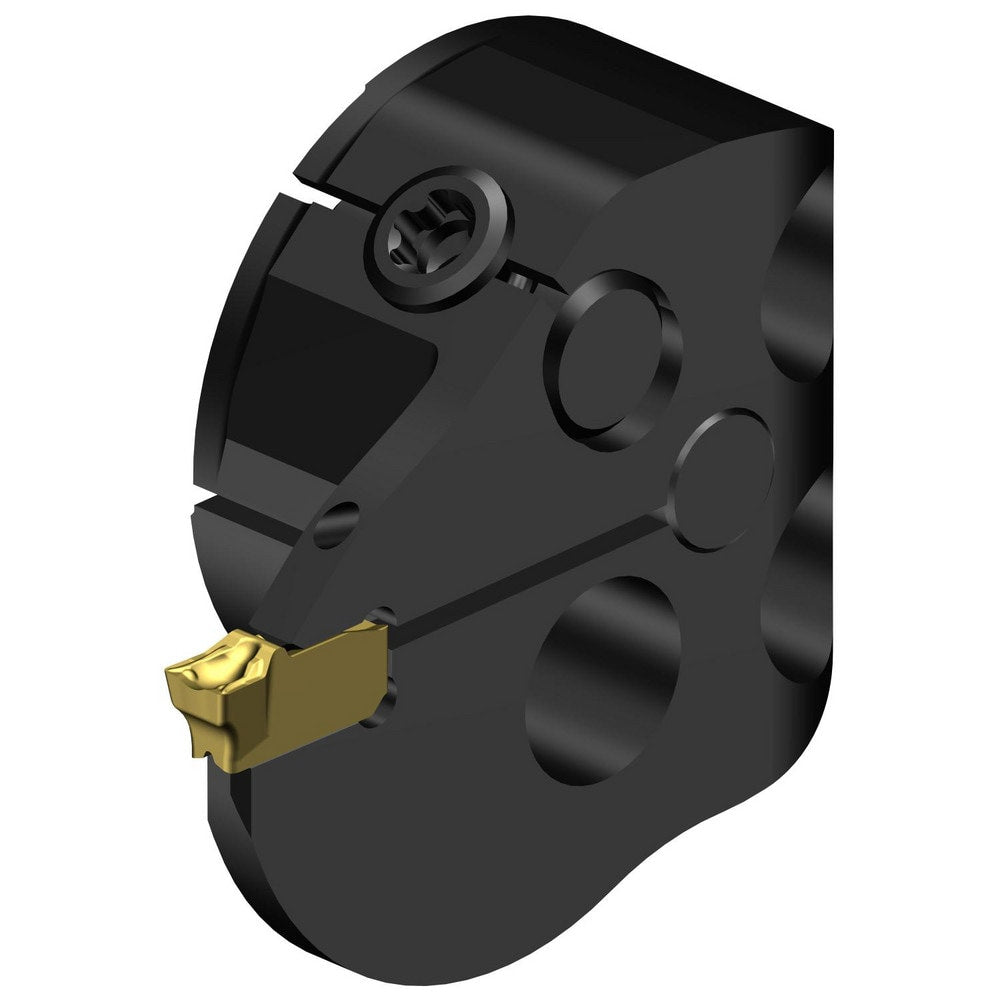

Brand: Sandvik Coromant / Part #: 8222624
Item #: 96010517
Brand: Sandvik Coromant
Model #: 8222624
Product Specifications
| System Size | 25 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Maximum Depth of Cut (mm) | 11.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Maximum Groove Width (Decimal Inch) | 0.1421 |
| Cutting Direction | Left Hand |
| Modular Head Style | Cutting Head |
| Compatible Insert Style | QI-N |
| Compatible Insert Size Code | G |
| Series | CoroCut QI |
| Center to Cutting Edge (Decimal Inch) | 1.0748 |
| Head Length Projection (Decimal Inch) | 0.5512 |
| Coolant Through | Yes |
| Head Length Projection (mm) | 14.00 |
