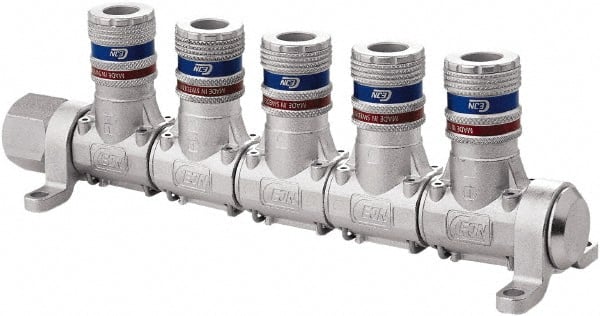

CEJN - 1/2" Inlet, 1/4" Outlet Manifold - 8-1/2" Long x 2.28" Wide x 2.7" High, 0.245" Mount Hole, 212°F Max, 230 Max PSI, 1 Inlet Port, 5 Outlet Ports
Item #: 31057912
Brand: CEJN
Model #: 19-902-9205-NPT
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inlet Size | 1/2" |
| Outlet Size | 1/4" |
| Number of Inlet Ports | 1 |
| Number Of Outlet Ports | 5 |
| Width (Decimal Inch) | 2.2800 |
| Overall Length (Decimal Inch) | 8.5000 |
| Height (Inch) | 2.70 |
| Outlet Center to Center Distance (Decimal Inch) | 4.88 |
| Thread Type | NPT |
| Minimum Temperature (F) | -4 |
| Maximum Temperature (F) | 212 |
| Maximum Working Pressure (psi) | 230 |
| Material | Zinc-Plated Steel/Zinc |
| Interchange Coupler Type | European High Flow Interchange |
| Mounting Hole Size Diameter (Decimal Inch) | 0.2450 |
