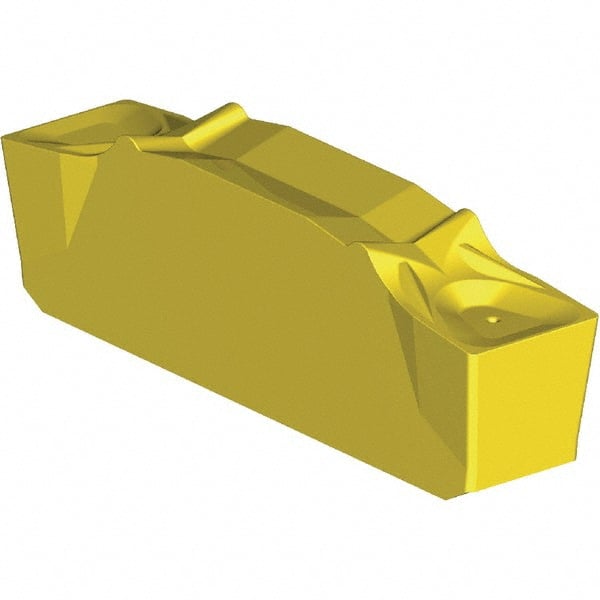

Kennametal - XCP51 GP Grade KCPM40 Carbide Milling Insert - AlCrTiN Finish, 5.17mm Thick, 0.4mm Corner Radius
Item #: 31153836
Brand: Kennametal
Model #: 5624964
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XCP |
| Insert Size | 51 |
| Material | Carbide |
| Manufacturer's Grade | KCPM40 |
| Coating | AlCrTiN |
| Width (mm) | 6.01 |
| Length (mm) | 18.01 |
| Thickness (mm) | 5.17 |
| Corner Radius (mm) | 0.40 |
| Relief Angle | 2.000 |
| Rake Angle | 11 |
| Coating Process | PVD |
| Shape | Irregular |
| Insert Hand | Neutral |
| Chipbreaker | GP |
| Maximum Depth of Cut (mm) | 12.68 |
