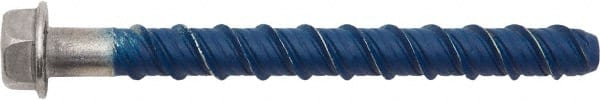

Powers Fasteners - 3/8" Diam, 3/8" Drill, 4" OAL, 1-5/8" Min Embedment Machine Screw Anchor Concrete Anchor - 316 Stainless Steel, Hex Head, Hex Drive, 3-1/2" Thread Length
Item #: 31188139
Brand: Powers Fasteners
Model #: 07884-PWR
Exact Tooling IR#: 04
Features and Benefits
Screw anchors are designed with steel threads along the anchor body tap into the hole during installation. They are heavy-duty anchors that reduce installation torque in concrete and masonry materials.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Machine Screw Anchor |
| Diameter (Inch) | 3/8 |
| Drill Size (Inch) | 3/8 |
| Overall Length (Inch) | 4 |
| Minimum Embedment (Inch) | 2 |
| Material | Stainless Steel |
| Material Grade | 316 |
| Head Type | Hex |
| Drive Type | Hex |
| Thread Length (Inch) | 3-1/2 |
| For Use With | Normal Weight Concrete; Grouted Concrete Masonry; Brick Masonry |
| System of Measurement | Inch |
