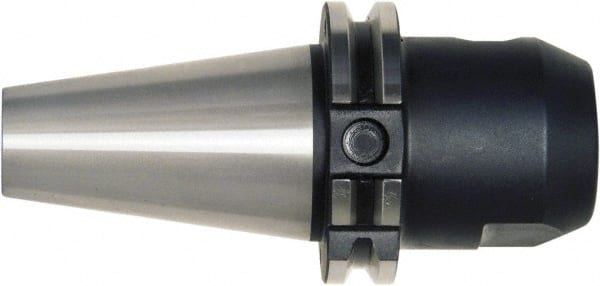

Bilz - CAT50 1/4" Shank Diam Taper Shank 1/4" Hole End Mill Holder/Adapter - 0.779" Nose Diam, 2-1/2" Projection, Through-Spindle, Through-Bore & DIN Flange Coolant
Item #: 31192826
Brand: Bilz
Model #: 66651254M
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Hole Diameter (Inch) | 1/4 |
| Nose Diameter (Inch) | 0.7790 |
| Projection (Inch) | 2-1/2 |
| Projection (Decimal Inch) | 2.5000 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 33.00 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Decimal Inch) | 6.5000 |
| Balanced to (RPM) | 8000 |
| TIR (mm) | 0.003 |
| Coolant Type | Through-Spindle, Through-Bore & DIN Flange |
