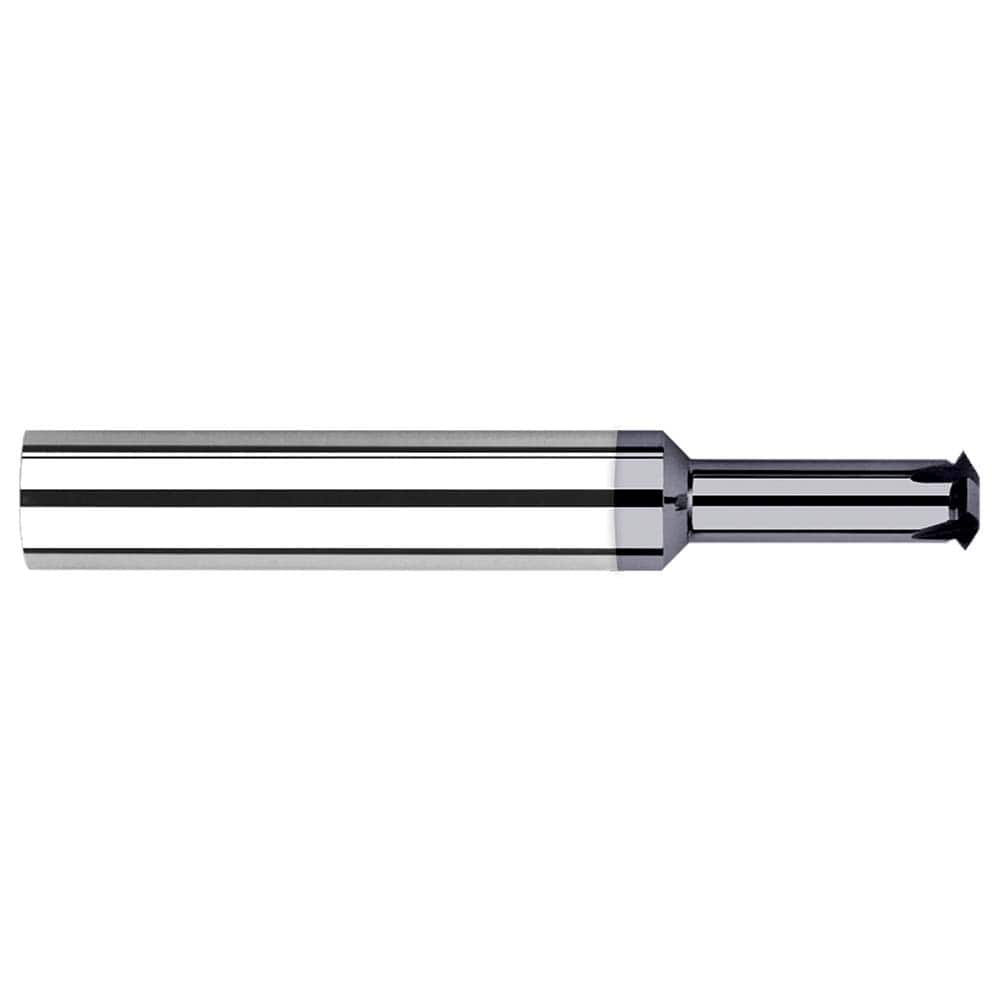

Harvey Tool - Single Profile Thread Mills; Maximum Threads Per Inch: 32 ; Minimum Threads Per Inch: 11 ; Thread Type: Internal/External ; Minimum Nominal Diameter (Inch): 5/8 ; Cutting Diameter (Inch): 0.4500 ; Shank Diameter (Inch): 1/2
Item #: 31195035
Brand: Harvey Tool
Model #: 41475-C3
Product Specifications
Single Profile Thread Mills; Maximum Threads Per Inch: 32 ; Minimum Threads Per Inch: 11 ; Thread Type: Internal/External ; Minimum Nominal Diameter (Inch): 5/8 ; Cutting Diameter (Inch): 0.4500 ; Shank Diameter (Inch): 1/2
| Maximum Threads Per Inch | 32 |
| Minimum Threads Per Inch | 11 |
| Thread Type | Internal/External |
| Minimum Nominal Diameter (Inch) | 5/8 |
| Cutting Diameter (Inch) | 0.4500 |
| Shank Diameter (Inch) | 1/2 |
| Material | Solid Carbide |
| Number of Flutes | 6 |
| Neck Diameter (Decimal Inch) | 0.3000 |
| Neck Length (Decimal Inch) | 1.3750 |
| Thread Size | 5/8-11 to 5/8-32 |
| Overall Length (Decimal Inch) | 3.00000 |
| Overall Length (Inch) | 3 |
| Thread Standard | UN 60 Degrees |
| Finish/Coating | AlTiN |
