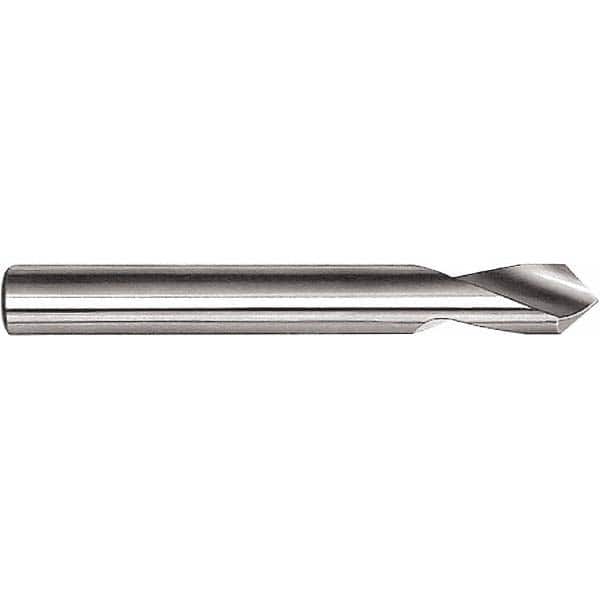

90° 10″ OAL 1-Flute High Speed Steel Spotting Drill Bright/Uncoated, 1-3/4″ Flute Length, 1″ Shank Diam, RH Cut
Item #: 31204605
Brand: Magafor
Model #: 8119C254010
Product Specifications
| Drill Point Angle | 90 |
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 10 |
| Tool Material | High Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Single/Double Ended | Single |
| Series | 8119C |
| Overall Length (Decimal Inch) | 10.0000 |
| Flute Length (Inch) | 1-3/4 |
| Flute Length (Decimal Inch) | 1.7500 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Straight-Cylindrical |
| Tool Performance | General Purpose |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
| Web Thinning | Web Thinned |
| Web Thickness | 0.1000 |
