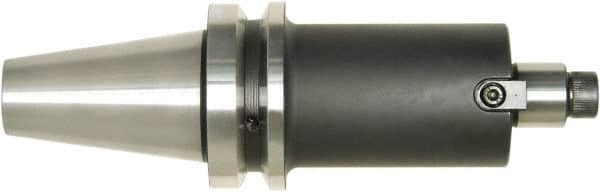

Bilz - BT40 Taper Shank 3/4" Pilot Diam Shell Mill Holder - 6" Flange to Nose End Projection, 1-3/4" Nose Diam, 3/8-24 Lock Screw, Through-Spindle Coolant
Item #: 31245954
Brand: Bilz
Model #: 66651519M
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Pilot Diameter (Inch) | 3/4 |
| Projection Flange to Nose End (Inch) | 6 |
| Through Coolant | Yes |
| Nose Diameter (Inch) | 1-3/4 |
| Overall Length (Decimal Inch) | 9.4620 |
| Balanced to (RPM) | 8000 |
| TIR (mm) | 0.005 |
| Coolant Type | Through-Spindle |
| Lock Screw Thread Size | 3/8-24 |
