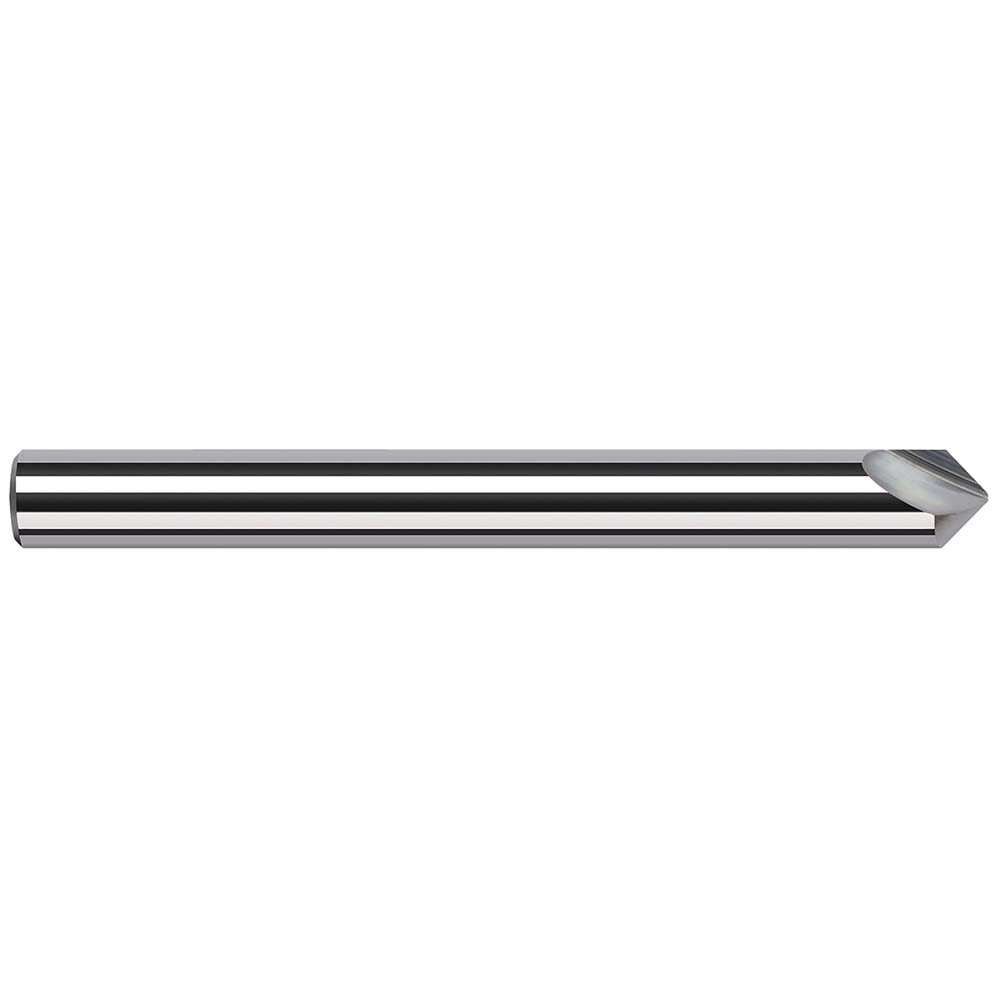

Engraving Cutters; Cutter Diameter (Decimal Inch): 0.1875; Point Shape: Tip Radius; Shank Diameter (Decimal Inch): 0.1875; Shank Diameter (Inch): 3/16
Item #: 05223284
Brand: Harvey Tool
Model #: 724330
Product Specifications
| Cutter Diameter (Decimal Inch) | 0.1875 |
| Point Shape | Tip Radius |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Diameter (Inch) | 3/16 |
| Included Angle | 60.00 |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.0000 |
| Cutting Direction | Right Hand |
| Series | Engraving Cutters - Marking Cutters - Tip Radius for Non-Ferrous Materials |
| Coating/Finish | Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3210 |
| Number Of Flutes | 2 |
| Cutter Material | Solid Carbide |
| UNSPSC Code | 23241614 |
