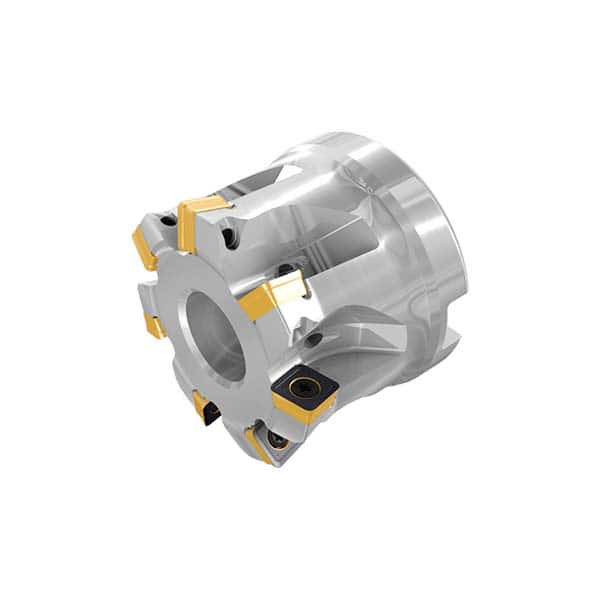

Iscar - Indexable High-Feed Face Mills; Cutting Diameter (Decimal Inch): 1.5000 ; Cutting Diameter (mm): 23.70 ; Maximum Depth of Cut (Decimal Inch): 0.0472 ; Arbor Hole Diameter (Decimal Inch): 0.5000 ; Overall Height (Decimal Inch): 1.4000 ; Series: FF
Item #: 31373194
Brand: Iscar
Model #: 3323464
Product Specifications
Indexable High-Feed Face Mills; Cutting Diameter (Decimal Inch): 1.5000 ; Cutting Diameter (mm): 23.70 ; Maximum Depth of Cut (Decimal Inch): 0.0472 ; Arbor Hole Diameter (Decimal Inch): 0.5000 ; Overall Height (Decimal Inch): 1.4000 ; Series: FFQ4
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (mm) | 23.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.0472 |
| Arbor Hole Diameter (Decimal Inch) | 0.5000 |
| Overall Height (Decimal Inch) | 1.4000 |
| Series | FFQ4 |
| Cutter Style | FFQ4 |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | FFQ4 SOMT 0904 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 8000 |
| Number of Flutes | 5 |
| Maximum Body Diameter (Decimal Inch) | 1.4170 |
| Maximum Body Diameter (mm) | 36.00 |
| Through Coolant | Yes |
