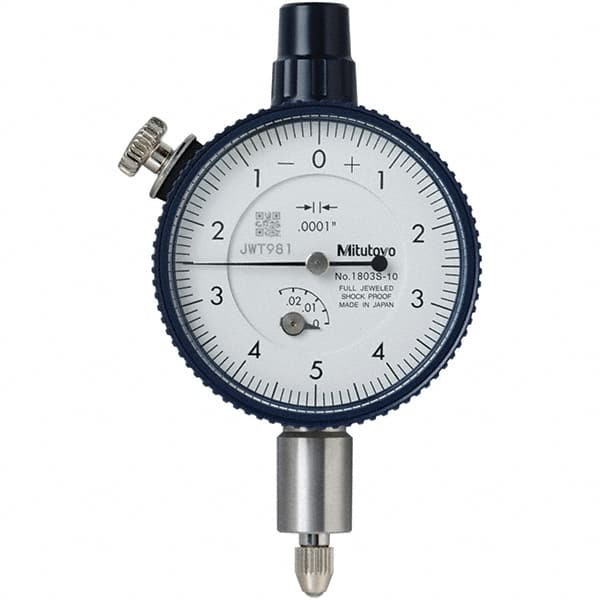

Mitutoyo - 1/4" Range, 0-5-0 Dial Reading, 0.0001" Graduation Dial Drop Indicator - 40mm Dial, 0.01" Range per Revolution, 0.0001" Accuracy, Revolution Counter
Item #: 31404494
Brand: Mitutoyo
Model #: 1803SB-10
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Measurement (Decimal Inch) | 0.2500 |
| Dial Graduation (Decimal Inch) | 0.000100 |
| Dial Reading | 0-5-0 |
| Dial Diameter (mm) | 40.00 |
| AGDGpNo | 0 |
| Accuracy (Decimal Inch) | 0.000100 |
| Dial Color | White |
| Measuring Force (N) | 1.40 |
| Range Per Revolution (Decimal Inch) | 0.0100 |
| Revolution Counter | Yes |
| Stem Diameter (Inch) | 3/8 |
| Back Type | Flat |
