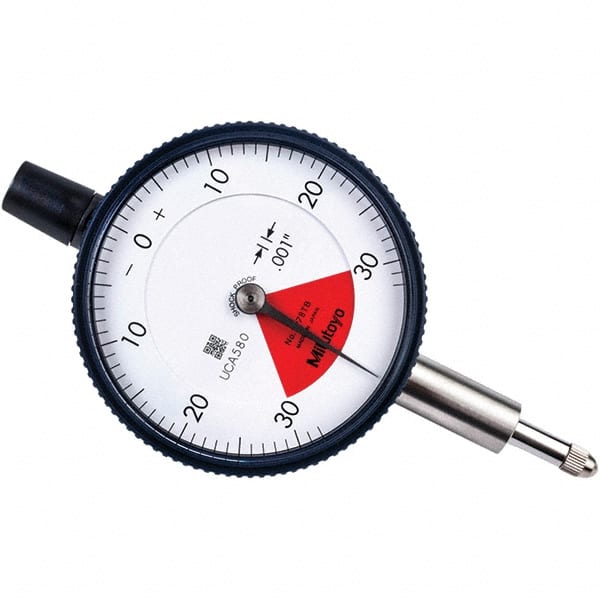

Mitutoyo - 0.06" Range, 30-0-30 Dial Reading, 0.001" Graduation Dial Drop Indicator - 2.24" Dial, 0.079" Range per Revolution, 0.001" Accuracy
Item #: 31404650
Brand: Mitutoyo
Model #: 2978TB
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Measurement (Decimal Inch) | 0.0600 |
| Dial Graduation (Decimal Inch) | 0.001000 |
| Dial Reading | 30-0-30 |
| Dial Diameter (Decimal Inch) | 2.2400 |
| AGDGpNo | 0 |
| Accuracy (Decimal Inch) | 0.001000 |
| Dial Color | White |
| Measuring Force (N) | 0.4 to 1.4 |
| Range Per Revolution (Decimal Inch) | 0.0790 |
| Revolution Counter | No |
| Features | Shockproof; Dustproof |
| Stem Diameter (Inch) | 3/8 |
| Back Type | Flat |
