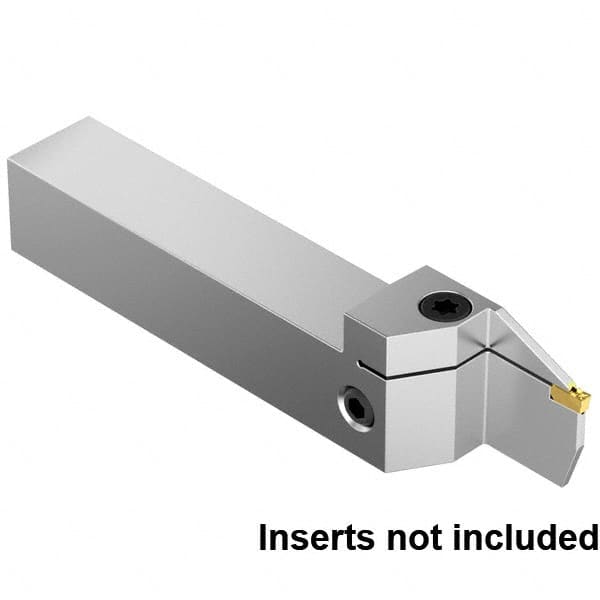

16mm Max Depth, 2mm to 2mm Width, External Right Hand Indexable Grooving/Cutoff Toolholder 125mm OAL, 20mm x 20mm Shank, Uses EG0200M02P02 Inserts, EVSM Toolholder, Through Coolant, Series EVSM
Item #: 31582265
Brand: Kennametal
Model #: 6401854
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (mm) | 16.00 |
| Hand of Holder | Right Hand |
| Maximum Groove Width (mm) | 2.00 |
| Minimum Groove Width (mm) | 2.00 |
| Toolholder Style | EVSM |
| Insert Holding Method | Clamp |
| Insert Compatibility | EG0200M02P02 |
| Shank Height (mm) | 20.00 |
| Shank Length (mm) | 89.70 |
| Shank Width/Diameter (mm) | 20.00 |
| Series | EVSM |
| Overall Length (mm) | 125.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7500 |
| Head Height (mm) | 28.25 |
| Head Length (mm) | 35.30 |
| Manufacturers Catalog Number | EVSMR2020K0216C |
| Complete Insert Compatibility | EG0200M02P02 |
| Coolant Through | Yes |
