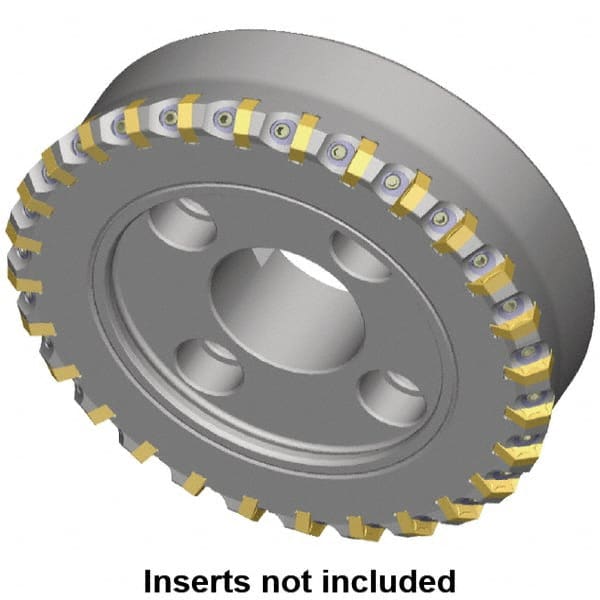

Kennametal - 80mm Cut Diam, 27mm Arbor Hole, 8mm Max Depth of Cut, 30° Indexable Chamfer & Angle Face Mill - 8 Inserts, HNG. 0905... Insert, Right Hand Cut, 8 Flutes, Series HexaCut
Item #: 31585995
Brand: Kennametal
Model #: 2016165
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 27.00 |
| Lead Angle | 30 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | HNG. 0905... |
| Series | HexaCut |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 8.00 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Clamp |
| Cutter Style | M750 |
| Number of Flutes | 8 |
| Hub Diameter (mm) | 80.00 |
| Keyway Width (mm) | 12.40 |
| Maximum Body Diameter (Decimal Inch) | 3.4921 |
| Maximum RPM | 3900 |
| Cutting Direction | Right Hand |
| Toolholder Material | Steel |
