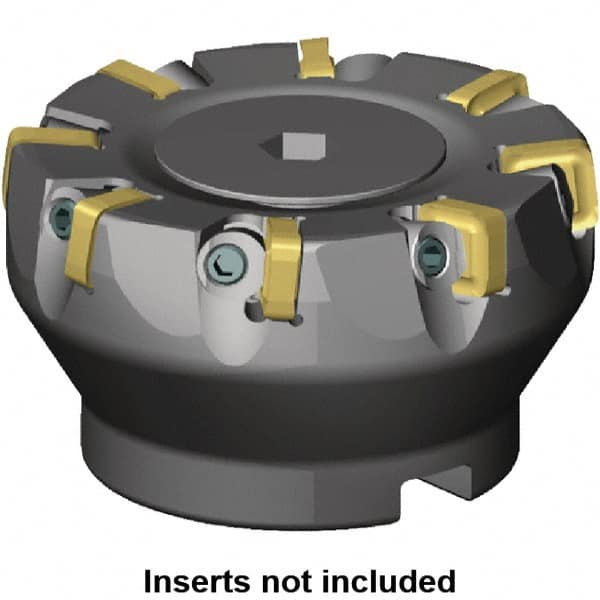

Kennametal - 160mm Cut Diam, 40mm Arbor Hole, 5mm Max Depth of Cut, 6° Indexable Chamfer & Angle Face Mill - 24 Inserts, SNXF 1204... Insert, Left Hand Cut, 24 Flutes, Through Coolant, Series KSSR
Item #: 31586001
Brand: Kennametal
Model #: 2466100
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160.00 |
| Cutting Diameter (Decimal Inch) | 6.2992 |
| Arbor Hole Diameter (mm) | 40.00 |
| Lead Angle | 6 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | SNXF 1204... |
| Series | KSSR |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.00 |
| Number of Cutter Inserts | 24 |
| Insert Holding Method | Clamp |
| Cutter Style | KSSR |
| Number of Flutes | 24 |
| Cutting Rake Angle | -9 |
| Hub Diameter (mm) | 90.00 |
| Keyway Width (mm) | 16.48 |
| Maximum Body Diameter (Decimal Inch) | 6.3780 |
| Maximum RPM | 3000 |
| Cutting Direction | Left Hand |
| Toolholder Material | Steel |
