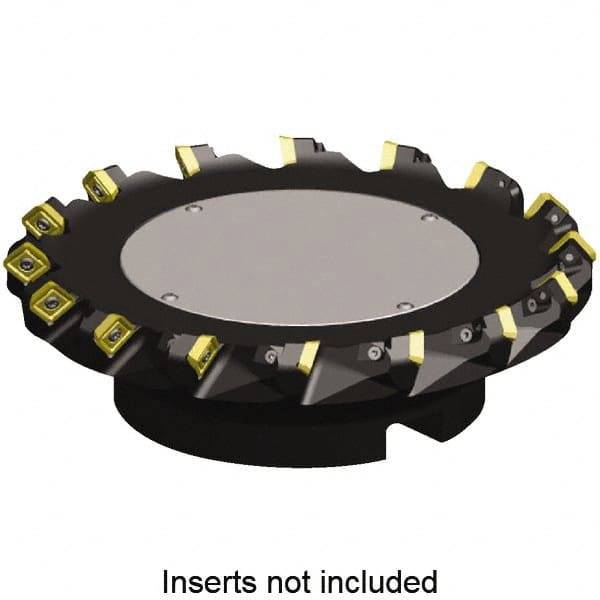

Kennametal - 6" Cut Diam, 2" Arbor Hole, 6.6mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 14 Inserts, SE...X443AE...N7... Insert, Right Hand Cut, 14 Flutes, Through Coolant, Series KSSM
Item #: 31586035
Brand: Kennametal
Model #: 4147542
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 6 |
| Cutting Diameter (Decimal Inch) | 6.0000 |
| Arbor Hole Diameter (Inch) | 2 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.3800 |
| Insert Compatibility | SE...X443AE...N7... |
| Series | KSSM |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 6.60 |
| Number of Cutter Inserts | 14 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | KSSM |
| Number of Flutes | 14 |
| Cutting Rake Angle | -10 |
| Hub Diameter (mm) | 127.00 |
| Maximum Body Diameter (Decimal Inch) | 6.5370 |
| Maximum RPM | 10500 |
| Cutting Direction | Right Hand |
| Toolholder Material | Steel |
