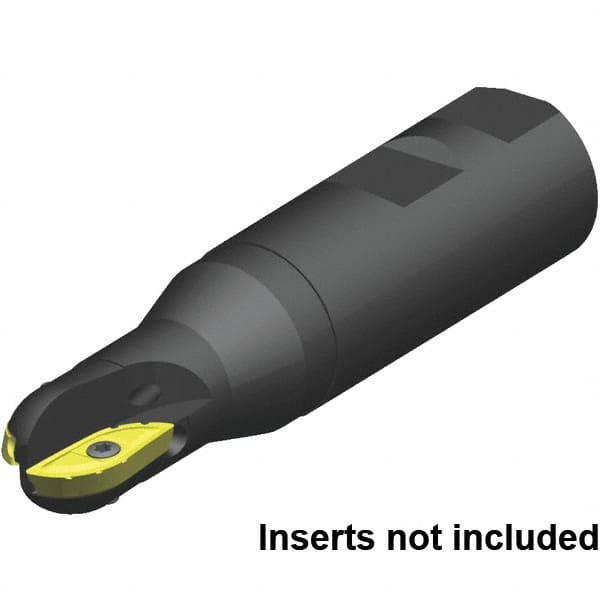

Kennametal - 40mm Cut Diam, 40mm Max Depth of Cut, 40mm Shank Diam, 170mm OAL, Indexable Ball Nose End Mill - 100mm Head Length, Weldon Shank, 5505VX Toolholder, XPNT4040T716RF Insert
Item #: 31586126
Brand: Kennametal
Model #: 5673113
Exact Tooling IR#: 04
Features and Benefits
Weldon flats, also known as Weldon Shanks, are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5750 |
| Maximum Depth of Cut (mm) | 40.00 |
| Shank Type | Weldon Shank |
| Shank Diameter (mm) | 40.00 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | XPNT4040T716RF |
| Toolholder Style | 5505VX |
| Series | 5505VX |
| Overall Length (mm) | 170.00 |
| Insert Holding Method | Screw & Clamp |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 100.00 |
| Maximum RPM | 17500 |
