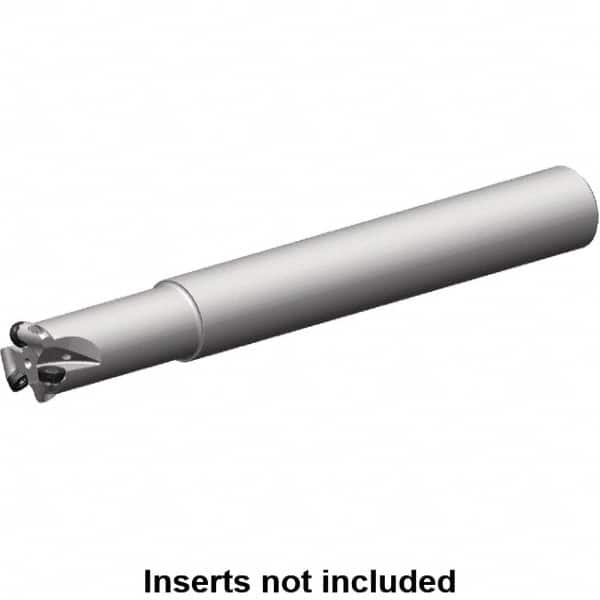

Kennametal - 19.76mm Cutting Diam, 1-1/4" Shank Diam, 1-1/4" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 3 Inserts, RP.. 1204M0.. Insert, 7713 Toolholder, Steel, Through Coolant
Item #: 31595580
Brand: Kennametal
Model #: 5673499
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/4 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (mm) | 6.00 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1 1/4 |
| Number of Cutter Inserts | 3 |
| Insert Style | RP.. 1204M0.. |
| Toolholder Style | 7713 |
| Series | 7713 |
| Overall Length (mm) | 250.00 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 19.76 |
| Head Length (mm) | 70.00 |
| Shank Length (mm) | 180.00 |
| Maximum RPM | 40500 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Minimum Cutting Diameter (Decimal Inch) | 0.7780 |
