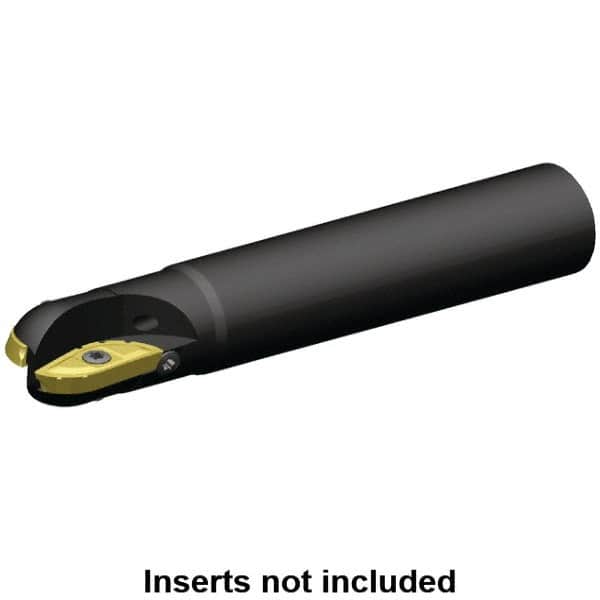

Kennametal - 1-1/4" Cut Diam, 1.276" Max Depth of Cut, 1-1/4" Shank Diam, 254mm OAL, Indexable Ball Nose End Mill - 65mm Head Length, Straight Shank, 5505 Toolholder, XPNT101043RF Insert
Item #: 31595689
Brand: Kennametal
Model #: 5673142
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 31.75 |
| Cutting Diameter (Inch) | 1-1/4 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (Decimal Inch) | 1.2760 |
| Shank Type | Cylindrical Shank |
| Shank Diameter (Inch) | 1 1/4 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | XPNT101043RF |
| Toolholder Style | 5505 |
| Series | 5505 |
| Overall Length (mm) | 254.00 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 65.00 |
| Maximum RPM | 23500 |
