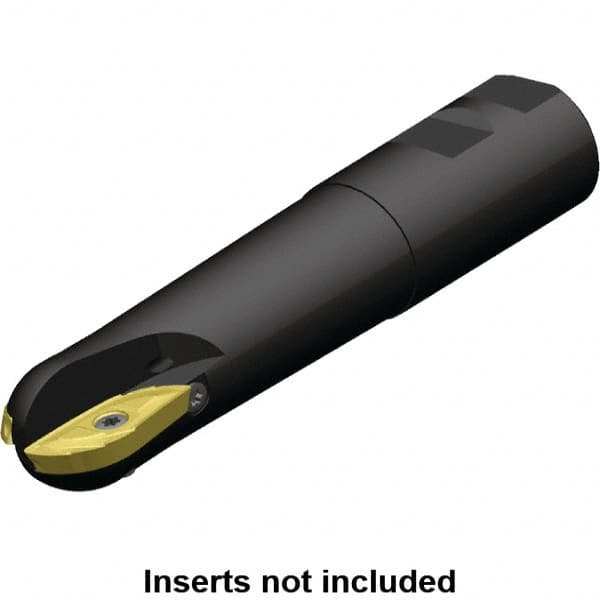

Kennametal - 1-1/2" Cut Diam, 1-1/2" Max Depth of Cut, 1-1/2" Shank Diam, 169.8mm OAL, Indexable Ball Nose End Mill - 101.5mm Head Length, Weldon Shank, 5505 Toolholder, XPNT121254RF Insert
Item #: 31595697
Brand: Kennametal
Model #: 5672839
Exact Tooling IR#: 04
Features and Benefits
Weldon flats, also known as Weldon Shanks, are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 38.10 |
| Cutting Diameter (Inch) | 1-1/2 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 1.5000 |
| Shank Type | Weldon Shank |
| Shank Diameter (Inch) | 1 1/2 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | XPNT121254RF |
| Toolholder Style | 5505 |
| Series | 5505 |
| Overall Length (mm) | 169.80 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 101.50 |
| Maximum RPM | 19000 |
