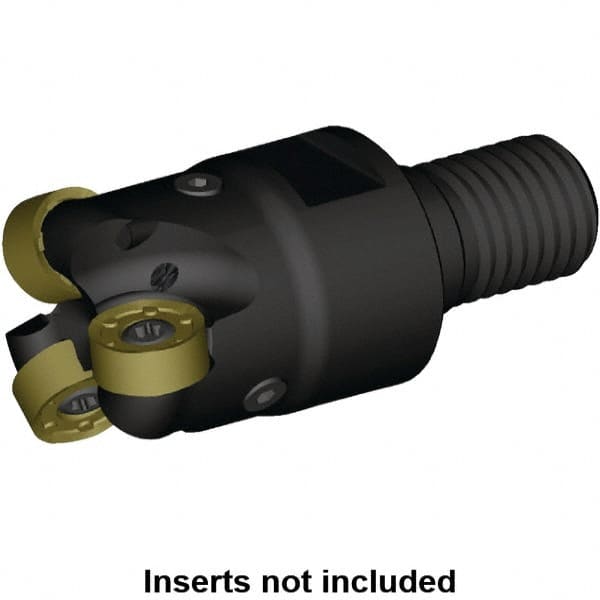

Kennametal - 23mm Cutting Diam, 29mm Shank Diam, 1.378" Max Depth of Cut, Modular Connection Indexable Copy End Mill - 3 Inserts, RN.J1204M0.. Insert, KDR Toolholder, Steel, Through Coolant
Item #: 31595820
Brand: Kennametal
Model #: 4147002
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 35.00 |
| Maximum Depth of Cut (mm) | 2.97 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M16 |
| Shank Diameter (mm) | 29.00 |
| Number of Cutter Inserts | 3 |
| Insert Style | RN.J1204M0.. |
| Toolholder Style | KDR |
| Series | KDR |
| Overall Length (mm) | 63.00 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 23.00 |
| Head Length (mm) | 40.00 |
| Maximum RPM | 37440 |
| Maximum Cutting Diameter (Decimal Inch) | 1.3780 |
| Modular Connection Size | M16 |
