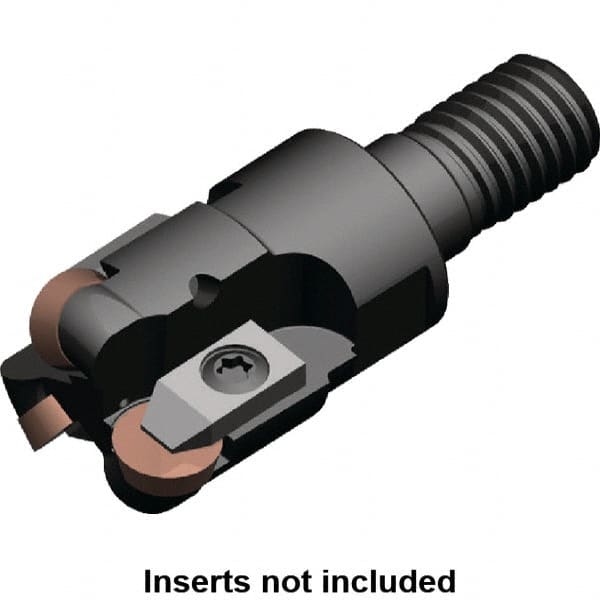

Kennametal - 19.46mm Cutting Diam, 29mm Shank Diam, 1.26" Max Depth of Cut, Modular Connection Indexable Copy End Mill - 3 Inserts, RP.N 1204.. Insert, KIPR Toolholder, Steel
Item #: 31595861
Brand: Kennametal
Model #: 3101753
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 6.33 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M16 |
| Shank Diameter (mm) | 29.00 |
| Number of Cutter Inserts | 3 |
| Insert Style | RP.N 1204.. |
| Toolholder Style | KIPR |
| Series | KIPR |
| Overall Length (mm) | 69.50 |
| Insert Holding Method | Clamp |
| Toolholder Material | Steel |
| Through Coolant | No |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 19.46 |
| Head Length (mm) | 45.00 |
| Shank Length (mm) | 24.50 |
| Maximum RPM | 20420 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2600 |
| Modular Connection Size | M16 |
