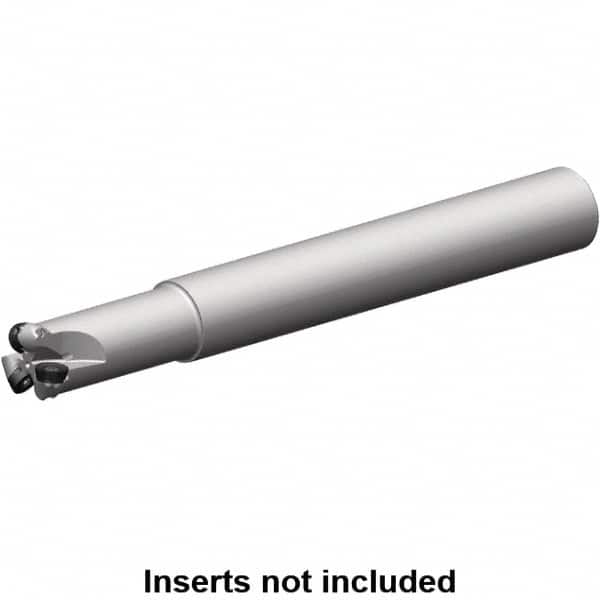

Kennametal - 21.75mm Cutting Diam, 1-1/4" Shank Diam, 1-1/4" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 4 Inserts, RP.. 10T3M0.. Insert, 7713 Toolholder, Steel, Through Coolant
Item #: 31595911
Brand: Kennametal
Model #: 5672804
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/4 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (mm) | 5.00 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1 1/4 |
| Number of Cutter Inserts | 4 |
| Insert Style | RP.. 10T3M0.. |
| Toolholder Style | 7713 |
| Series | 7713 |
| Overall Length (mm) | 250.00 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (mm) | 21.75 |
| Head Length (mm) | 70.00 |
| Shank Length (mm) | 180.00 |
| Maximum RPM | 53500 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Minimum Cutting Diameter (Decimal Inch) | 0.8560 |
