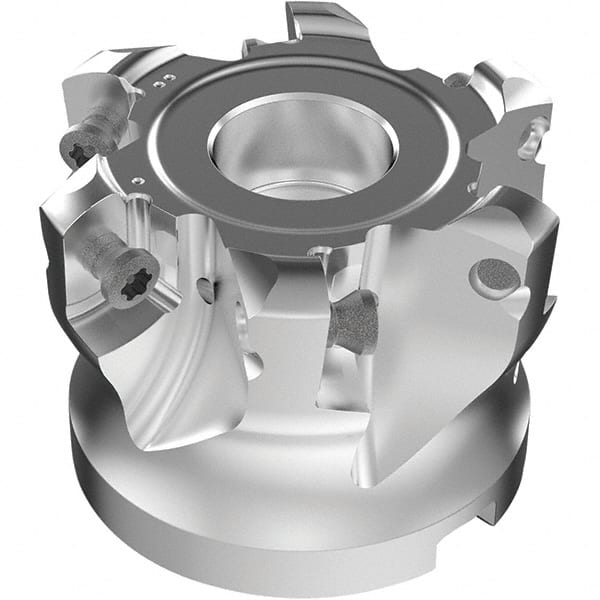

Seco - 6 Inserts, 50.5mm Cutter Diam, 1.8mm Max Depth of Cut, Indexable High-Feed Face Mill - 19.05mm Arbor Hole Diam, 0.185" Keyway Width, 1-1/2" High, R220.21-LP09 Toolholder, LPKT09 Inserts, Series High Feed
Item #: 31634405
Brand: Seco
Model #: 03212905
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.9900 |
| Cutting Diameter (mm) | 50.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0700 |
| Maximum Depth of Cut (mm) | 1.80 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Arbor Hole Diameter (mm) | 19.05 |
| Overall Height (Inch) | 1-1/2 |
| Overall Height (Decimal Inch) | 1.5000 |
| Overall Height (mm) | 38.10 |
| Series | High Feed |
| Cutter Style | R220.21-LP09 |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | LPKT09 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 22000 |
| Number of Flutes | 6 |
| Maximum Body Diameter (Decimal Inch) | 2.5000 |
| Maximum Body Diameter (mm) | 63.50 |
| Through Coolant | Yes |
| Complete Insert Compatibility | LPxx09 |
| Keyway Width (Decimal Inch) | 0.1850 |
