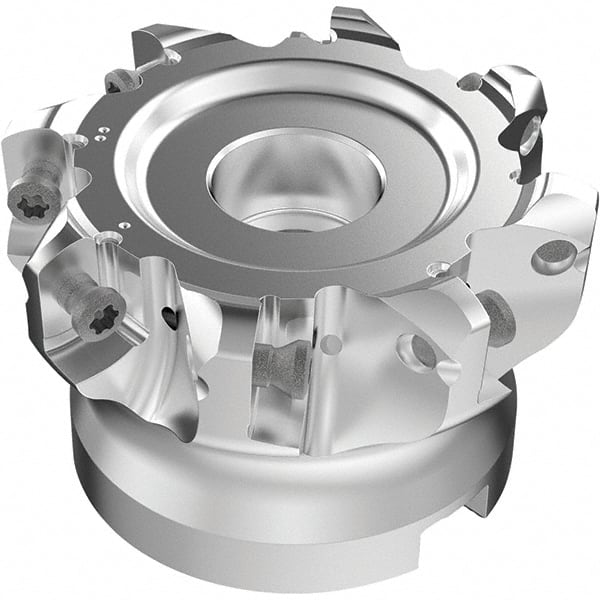

Seco - 8 Inserts, 50.1mm Cutter Diam, 1.8mm Max Depth of Cut, Indexable High-Feed Face Mill - 22mm Arbor Hole Diam, 0.248" Keyway Width, 40mm High, R220.21-LP09 Toolholder, LPKT09 Inserts, Series High Feed
Item #: 31634777
Brand: Seco
Model #: 03212895
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.9700 |
| Cutting Diameter (mm) | 50.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.0700 |
| Maximum Depth of Cut (mm) | 1.80 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Arbor Hole Diameter (mm) | 22.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Overall Height (mm) | 40.00 |
| Series | High Feed |
| Cutter Style | R220.21-LP09 |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | LPKT09 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 22100 |
| Number of Flutes | 8 |
| Maximum Body Diameter (Decimal Inch) | 2.4803 |
| Maximum Body Diameter (mm) | 63.00 |
| Through Coolant | Yes |
| Complete Insert Compatibility | LPxx09 |
| Keyway Width (Decimal Inch) | 0.2480 |
