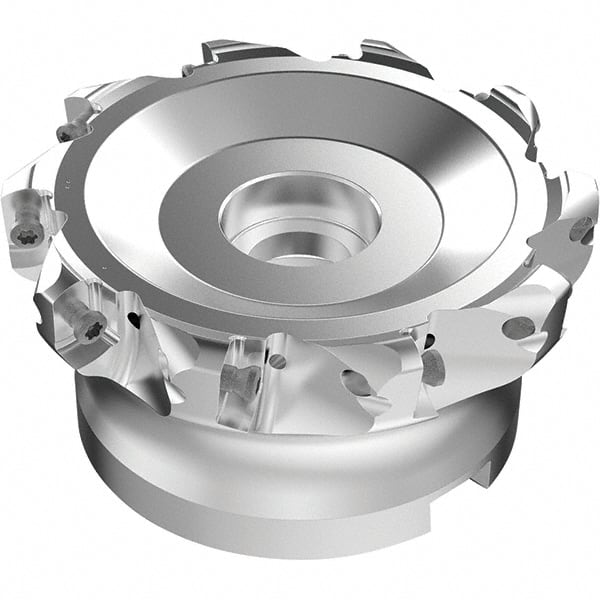

Seco - 10 Inserts, 87mm Cutter Diam, 1.8mm Max Depth of Cut, Indexable High-Feed Face Mill - 32mm Arbor Hole Diam, 0.5669" Keyway Width, 50mm High, R220.21-LP09 Toolholder, LPKT09 Inserts, Series High Feed
Item #: 31634850
Brand: Seco
Model #: 03212899
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.4300 |
| Cutting Diameter (mm) | 87.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0700 |
| Maximum Depth of Cut (mm) | 1.80 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Arbor Hole Diameter (mm) | 32.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Series | High Feed |
| Cutter Style | R220.21-LP09 |
| Number of Cutter Inserts | 10 |
| Insert Compatibility | LPKT09 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 17600 |
| Number of Flutes | 10 |
| Maximum Body Diameter (Decimal Inch) | 3.9370 |
| Maximum Body Diameter (mm) | 100.00 |
| Through Coolant | Yes |
| Complete Insert Compatibility | LPxx09 |
| Keyway Width (Decimal Inch) | 0.5669 |
