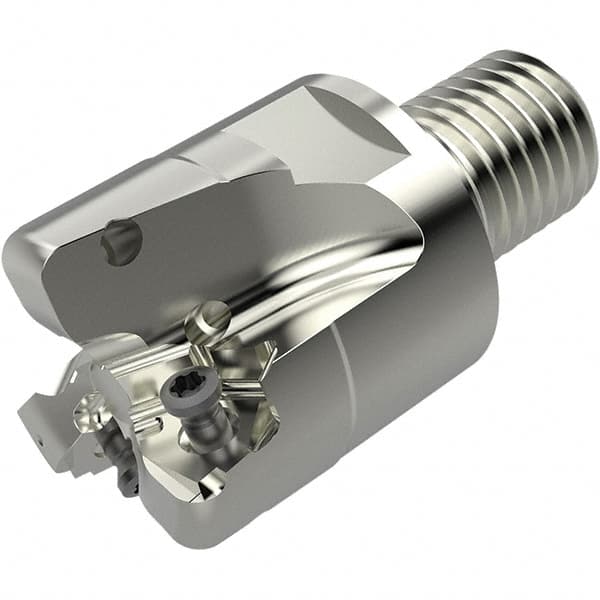

Seco - 1-1/2" Cut Diam, 7.5mm Max Depth of Cut, 40mm OAL, Indexable Square Shoulder End Mill - XN..0804.. Inserts, M20 Modular Connection, 90° Lead Angle, Through Coolant, Series R217.96
Item #: 31634892
Brand: Seco
Model #: 03212088
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Modular Connection |
| Modular Connection Size | M20 |
| Overall Length/Projection (mm) | 40.00 |
| Overall Length/Projection (Decimal Inch) | 1.5700 |
| Lead Angle | 90 |
| Series | R217.96 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 7.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | R217.96 |
| Number of Flutes | 3 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5750 |
| Weldon Flat | No |
| Insert Compatibility | XN..0804.. |
| Maximum RPM | 20700 |
| Toolholder Material | Steel |
